SEP Wire mesh trays have a standard length of 3metres with side walls of 60mm.
Our standard widths are 60mm,100mm,150mm,200mm,300mm,400mm,450mm,500mm & 600mm.
In the smaller sizes (60mm-100mm) we can also fabricate trays with 30mm side walls.
SEP Manufacturer all components and accessories for our systems.
We have multiple mounting and connection options available to make your installation easy.
Please click the image below to download technical information

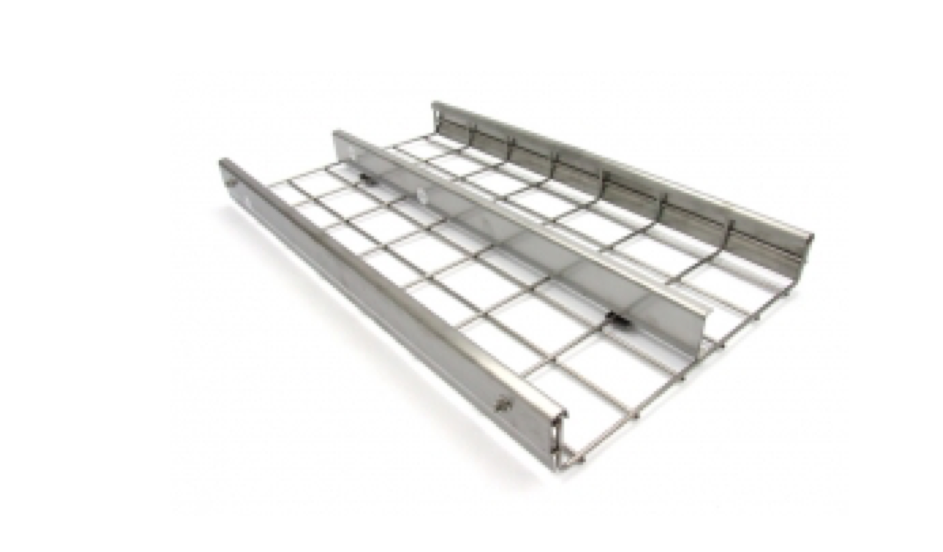

60mm High Basket Trays
PART NO. | DIMENSIONS |
SEP3000 | 60mm x 60mm x 3m |
SEP3001 | 100mm x 60mm x 3m |
SEP3015 | 150mm x 60mm x 3m |
SEP3002 | 200mm x 60mm x 3m |
SEP3003 | 300mm x 60mm x 3m |
SEP3004 | 400mm x 60mm x 3m |
SEP3045 | 450mm x 60mm x 3m |
SEP3005 | 500mm x 60mm x 3m |
SEP3006 | 600mm x 60mm x 3m |

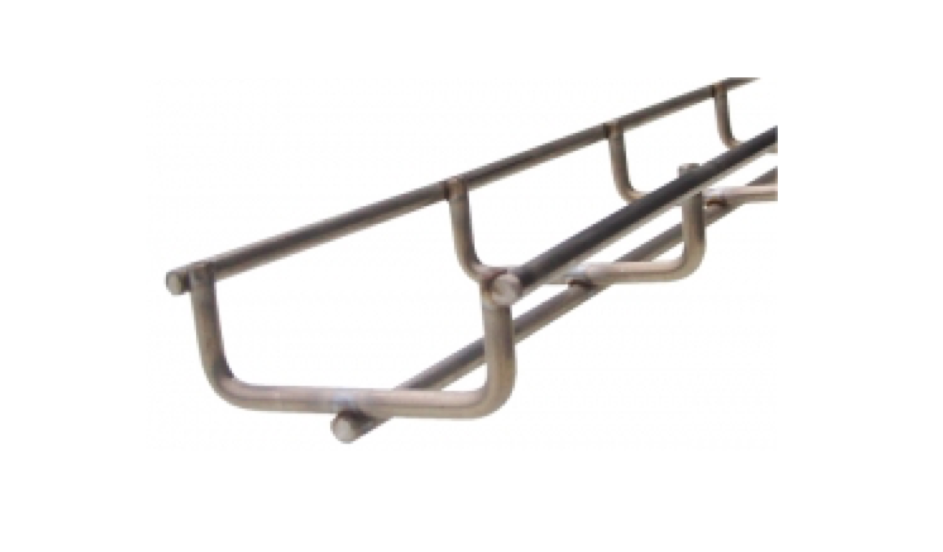

30mm High Basket Trays
PART NO. | DIMENSIONS |
SEP3300 | 60mm x 30mm x 3m |
SEP3301 | 100mm x 30mm x 3m |
SEP3315 | 150mm x 30mm x 3m |
Flat Basket Tray
PART NO. | DIMENSIONS |
SEP3302 | 60mmW Flat x 3m |

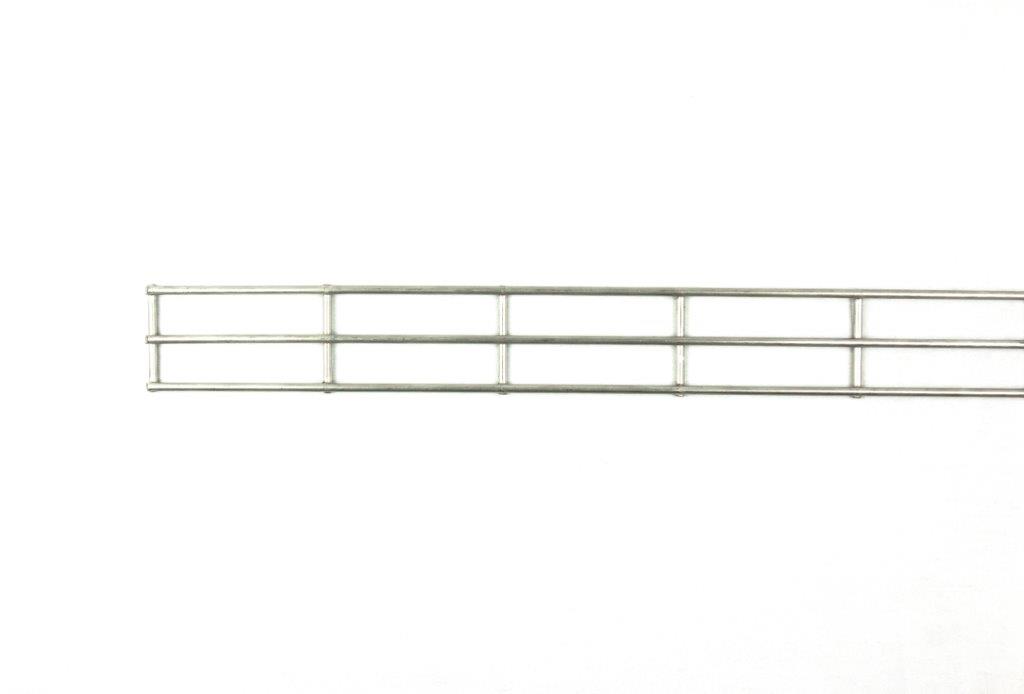

Wall Reinforcer
PART NO. | DIMENSIONS |
SEP3082 | 60mmW x 3m |
