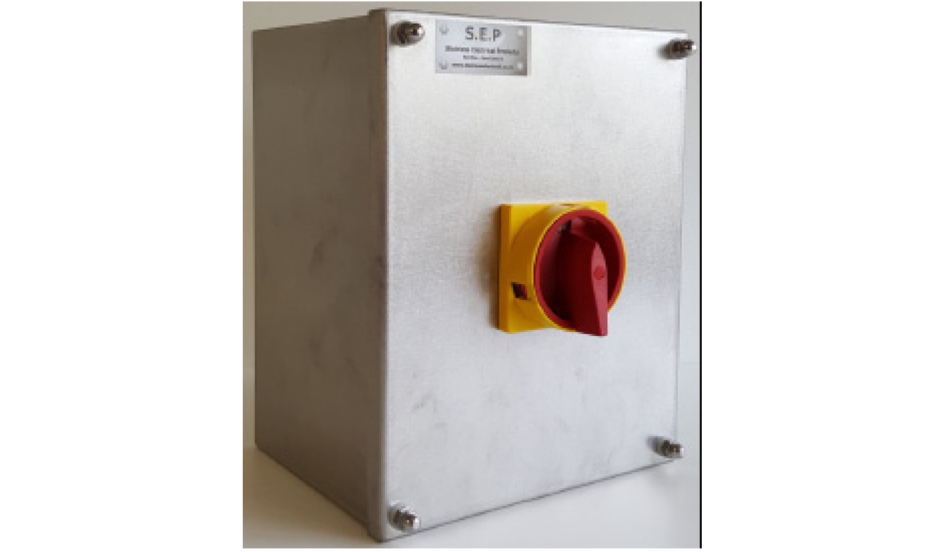

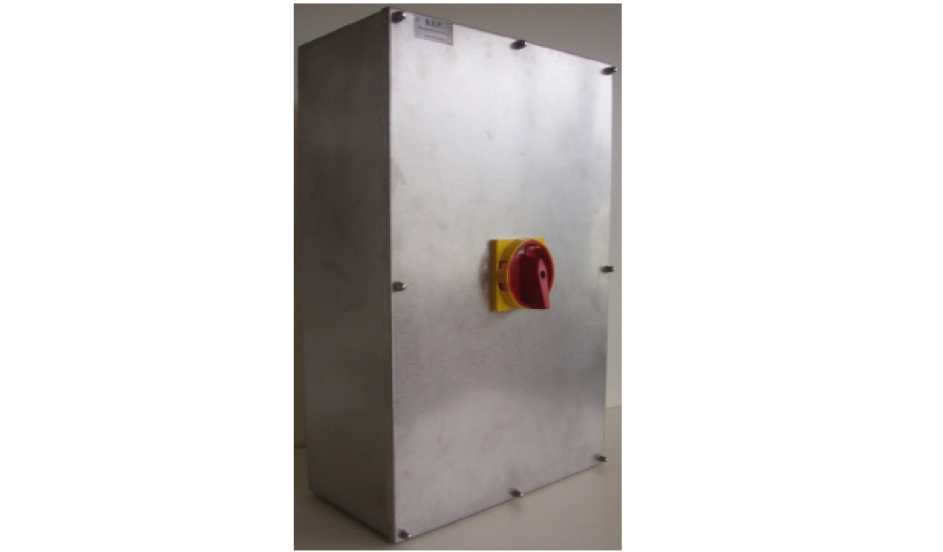

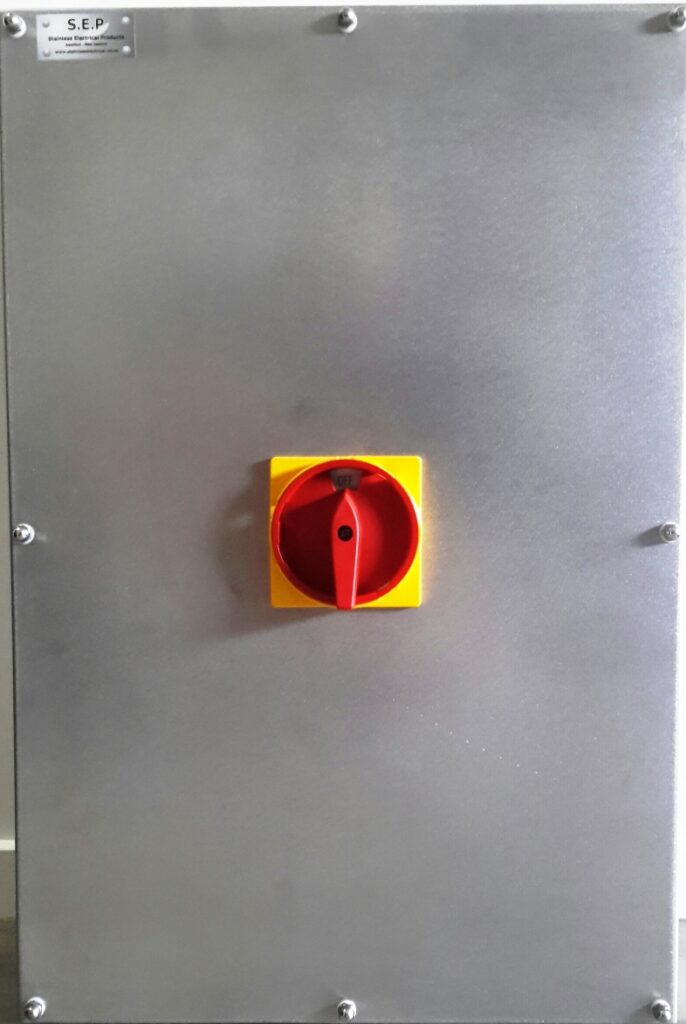

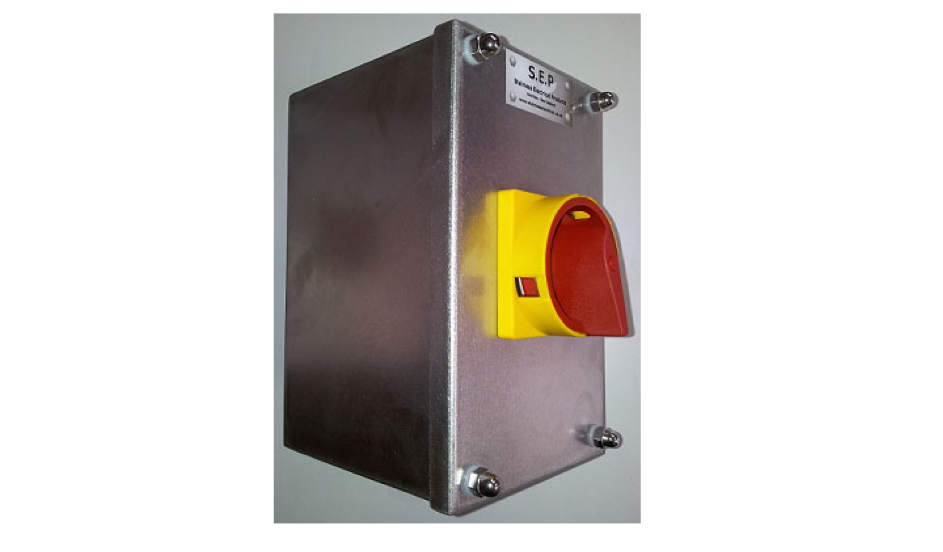

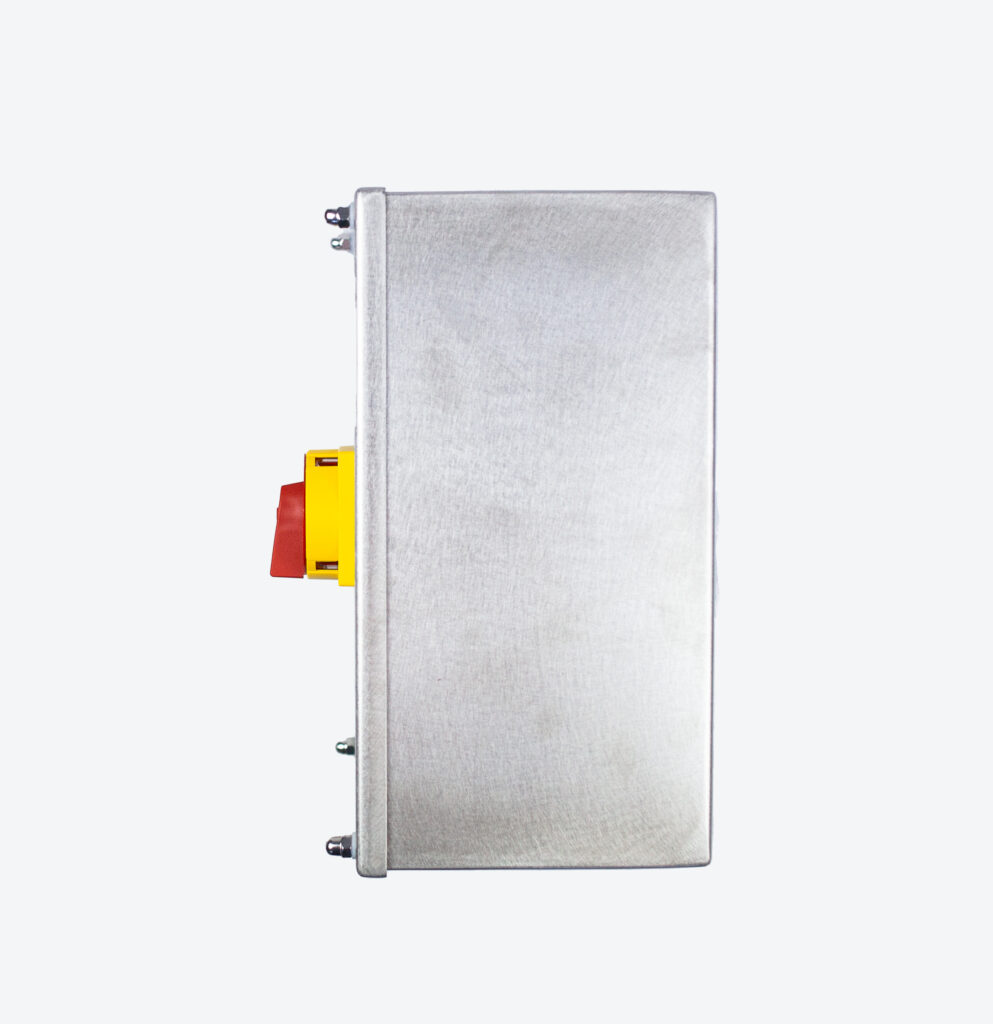

Enclosures are fitted with an K&N 3 Pole Disconnect Switch, 2 NO Aux contacts and a red/yellow pad-lockable handle.
Our Enclosed Isolator range covers 7.5Kw to 110kW. Additional customised adjustments are possible.
These enclosures are manufactured from 304 grade (316 on request) 1.2mm stainless steel (corrosion resistant in natural and food atmospheres) with 180 grit level grain finish. The sealing gasket is a one-piece white EPDM sponge, food grade approved.
M6 Earthing studs are welded to the body and front cover. Dome nuts with stainless steel studs are welded to the body ensuring a positive fixing for the lid.
The IP66 unit is certified (No. 25408) NATA & IANZ tested to IP66 (AS 60529 : 2004) protection rating, dust tight and protected from high pressure hosing from any practicable direction.
K&N DOL Standard Design IP66 Enclosures
| PART NO. | kW RATING | DIMENSIONS | HOLE OPTIONS |
| SEP2941 | 0-7.5kW DOL | 200mm x 120mm x 125mm | 2x20mm 1x16mm 2x25mm 1x16mm 2x32mm 1x16mm |
| SEP2942 | 0-15kW DOL | 200mm x 120mm x 125mm | 2x20mm x 1x16mm 2x25mm x 1x16mm 2x32mm x 1x16mm |
| SEP2943 | 15-30kW DOL | 300mm x 250mm x 150mm | 2x25mm x 1x16mm 2x32mm x 1x16mm 2x40mm x 1x16mm |
| SEP2944 | 30-45kW DOL | 300mm x 250mm x 150mm | 2x25mm x 1x16mm 2x32mm x 1x16mm 2x40mm x 1x16mm |
| SEP2945 | 45-75kW DOL | 400mm x 300mm x 200mm | 2x32mm x 1x16mm 2x40mm x 1x16mm 2x50mm x 1x16mm |
| SEP2946 | 75-110kW DOL | 600mm x 400mm x 200mm | 2x32mm x 1x16mm 2x40mm x 1x16mm 2x50mm x 1x16mm 2x63mm x 1x16mm |
K&N VSD Standard Design IP66 Enclosures
| PART NO. | kW RATING | DIMENSIONS | HOLE OPTIONS |
| SEP2951 | 0-7.5kW VSD | 200mm x 120mm x 125mm | 2x20mm 1x16mm 2x25mm 1x16mm 2x32mm 1x16mm |
| SEP2952 | 0-15kW VSD | 200mm x 120mm x 125mm | 2x20mm x 1x16mm 2x25mm x 1x16mm 2x32mm x 1x16mm |
| SEP2953 | 15-30kW VSD | 300mm x 250mm x 150mm | 2x25mm x 1x16mm 2x32mm x 1x16mm 2x40mm x 1x16mm |
| SEP2954 | 30-45kW VSD | 300mm x 250mm x 150mm | 2x25mm x 1x16mm 2x32mm x 1x16mm 2x40mm x 1x16mm |
| SEP2955 | 45-75kW VSD | 400mm x 300mm x 200mm | 2x32mm x 1x16mm 2x40mm x 1x16mm 2x50mm x 1x16mm |
| SEP2956 | 75-110kW VSD | 600mm x 400mm x 200mm | 2x32mm x 1x16mm 2x40mm x 1x16mm 2x50mm x 1x16mm 2x63mm x 1x16mm |
