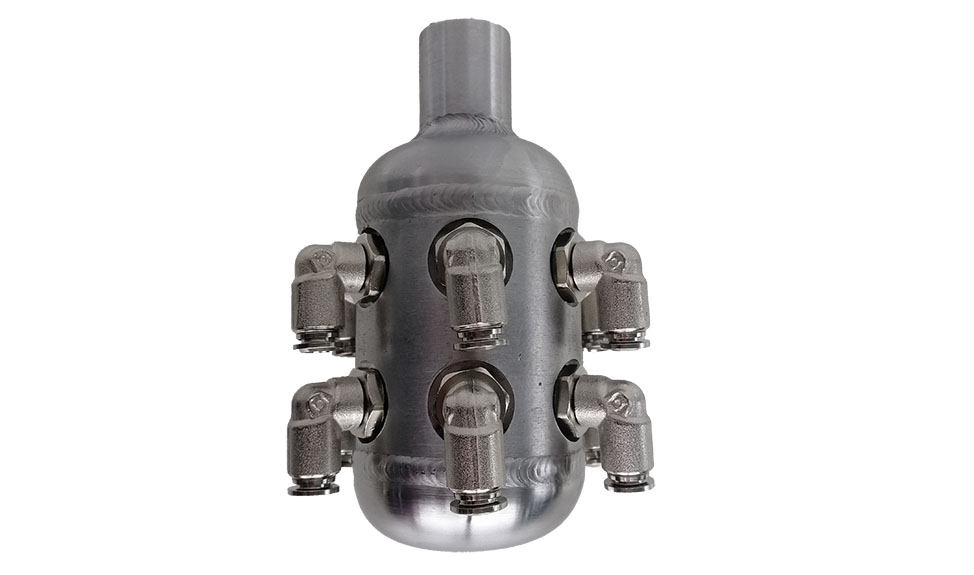

SEP3956

10 Way Air Manifold
1x 1/2 BSP Socket on Top
10x Tapped 1/4 BSP Holes
10x 6mm – 1/4 BSP Swivel Elbows Fitted

Option for 1/8 BSP tapped drain hole in the bottom – Code: SEP3956/D

Stainless Fittings – Codes:
SEP3956/SS
SEP3956/D/SS

SEP3957

20 Way Air Manifold
1x 1/2 BSP Socket on Top
20x Tapped 1/4 BSP Holes
20x 6mm – 1/4 BSP Swivel Elbows Fitted

Option for 1/8 BSP tapped drain hole in the bottom – Code: SEP3957/D

Stainless Fittings – Codes:
SEP3957/SS
SEP3957/D/SS

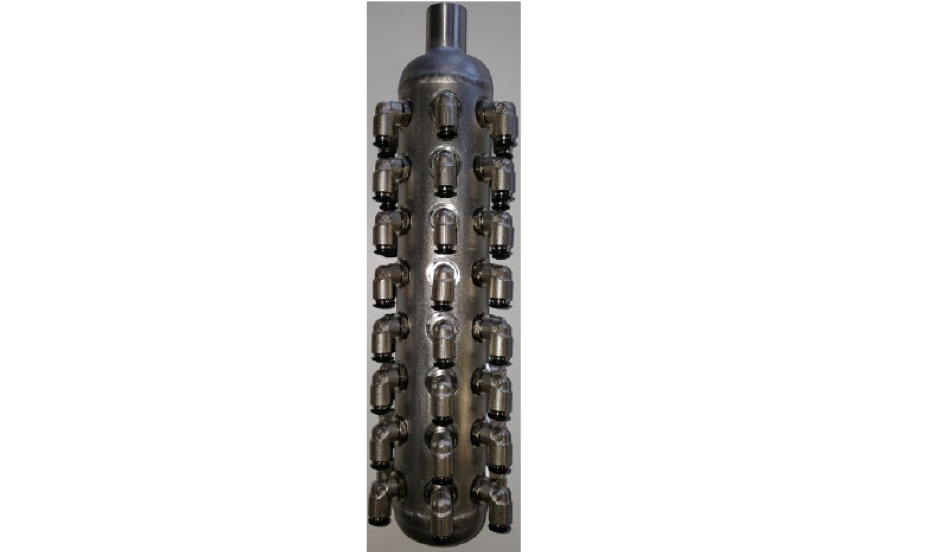

SEP3958

40 Way Air Manifold
1x 1/2 BSP Socket on Top
40x Tapped 1/4 BSP Holes
40x 6mm – 1/4 BSP Swivel Elbows Fitted

Option for 1/8 BSP tapped drain hole in the bottom – Code: SEP3958/D

Stainless Fittings – Codes:
SEP3958/SS
SEP3958/D/SS


SEP3956/A

10 Way Air Manifold
1x 1/2 BSP Socket on Top
10x Tapped 1/4 BSP Holes
10x 6mm – 1/4 BSP Swivel Elbows Fitted
Auto Drain Filter Bowl

Stainless Fittings – Code:
SEP3956/A/SS

SEP3957/A

20 Way Air Manifold
1x 1/2 BSP Socket on Top
20x Tapped 1/4 BSP Holes
20x 6mm – 1/4 BSP Swivel Elbows Fitted
Auto Drain Filter Bowl

Stainless Fittings – Code:
SEP3957/A/SS

SEP3958/A

40 Way Air Manifold
1x 1/2 BSP Socket on Top
40x Tapped 1/4 BSP Holes
40x 6mm – 1/4 BSP Swivel Elbows Fitted
Auto Drain Filter Bowl

Stainless Fittings – Code:
SEP3958/A/SS

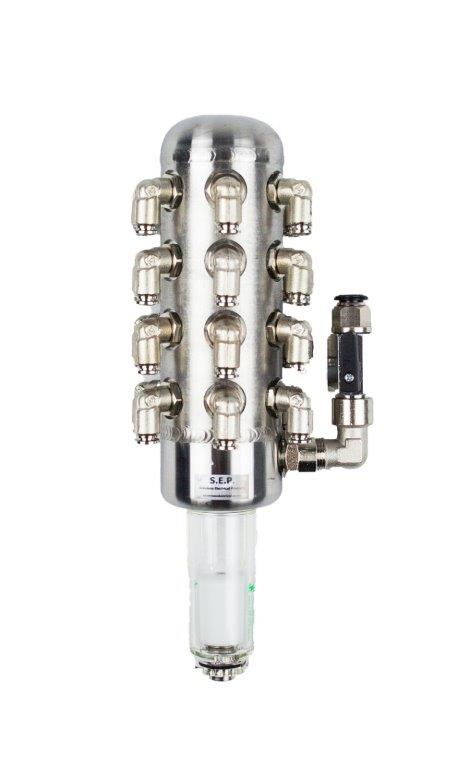

SEP3903

10 Way Air Manifold
10x Tapped 1/4 BSP Holes
10x 6mm – 1/4 BSP Swivel Elbows Fitted
1x 3/8 Ball Valve
1x 3/8 – 3/8 Nipple
1x 10mm – 3/8 Air Push Fitting
Auto Drain Filter Bowl

Stainless Fittings – Code:
SEP3903/SS

SEP3904

20 Way Air Manifold
20x Tapped 1/4 BSP Holes
20x 6mm – 1/4 BSP Swivel Elbows Fitted
1x 3/8 Ball Valve
1x 3/8 – 3/8 Nipple
1x 10mm – 3/8 Air Push Fitting
Auto Drain Filter Bowl

Stainless Fittings – Code:
SEP3904/SS

SEP3905

40 Way Air Manifold
40x Tapped 1/4 BSP Holes
40x 6mm – 1/4 BSP Swivel Elbows Fitted
1x 3/8 Ball Valve
1x 3/8 – 3/8 Nipple
1x 10mm – 3/8 Air Push Fitting
Auto Drain Filter Bowl

Stainless Fittings – Code:
SEP3905/SS
