| 304 PART NO. | DIMENSIONS | PUSH BUTTON | WITH DIN NO. | 316 PART NO. |

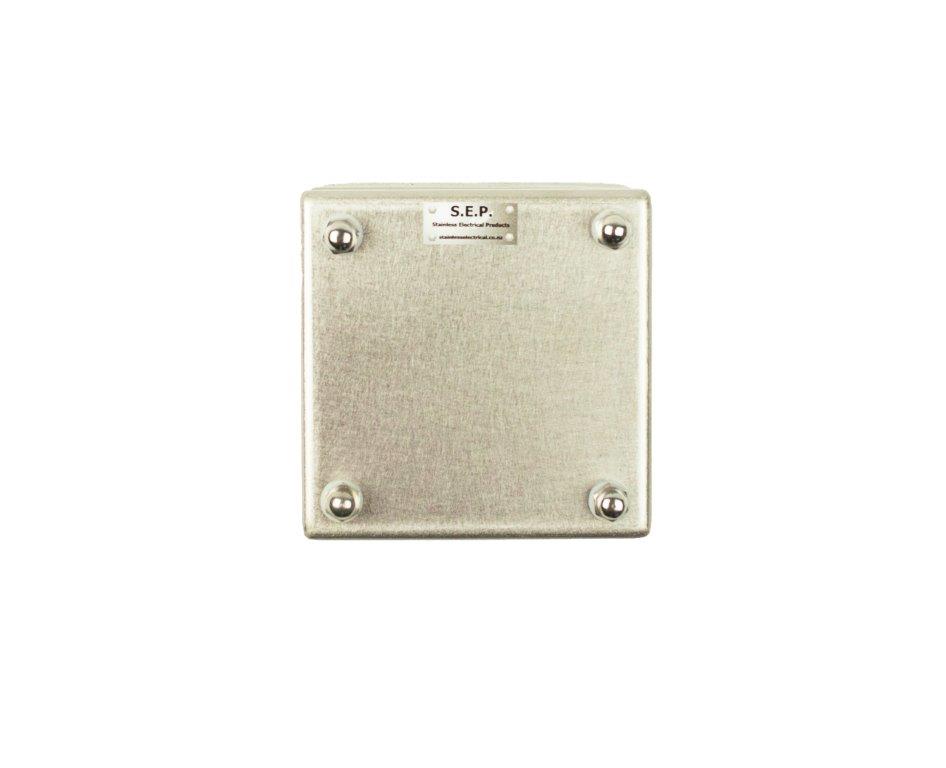

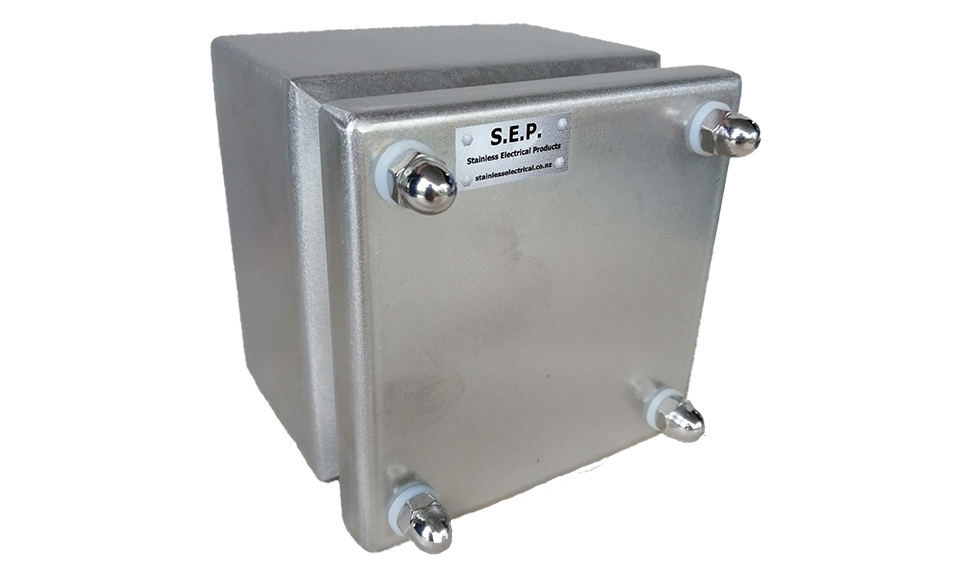

| SEP1001 | 100mmH x 100mmW x 85mmD | N/A | SEP1001/D | SEP1301 |

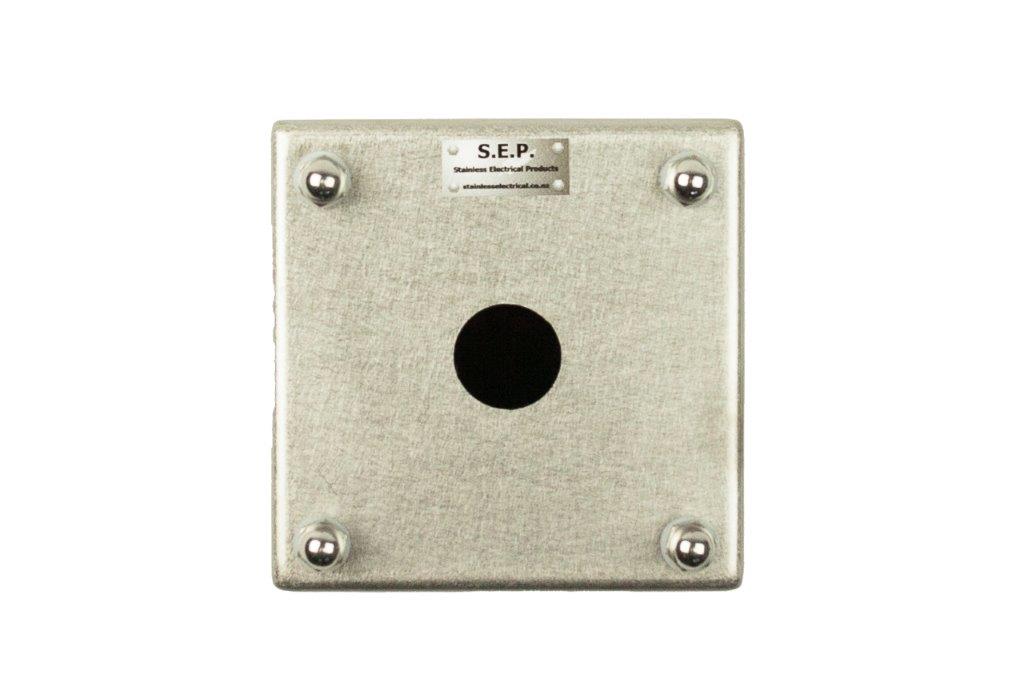

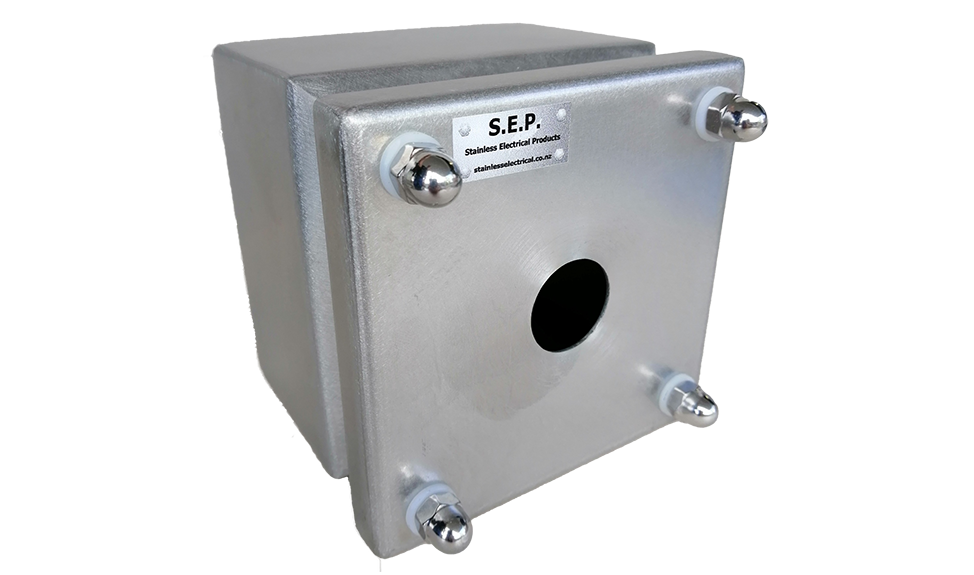

| SEP1001/1 | 100mmH x 100mmW x 85mmD | 1 x 22.5mm Centred Push Button entry in lid | N/A | SEP1301/1 |
| SEP1001/10C | 100mmH x 100mmW x 85mmD | 1 x 22.5mm Off-Centred Push Button entry in lid (for Engraved Label) | N/A | SEP1301/10C |
| 304 PART NO. | DIMENSIONS | PUSH BUTTON | WITH DIN NO. | WITH GEAR PLATE NO. | 316 PART NO. |

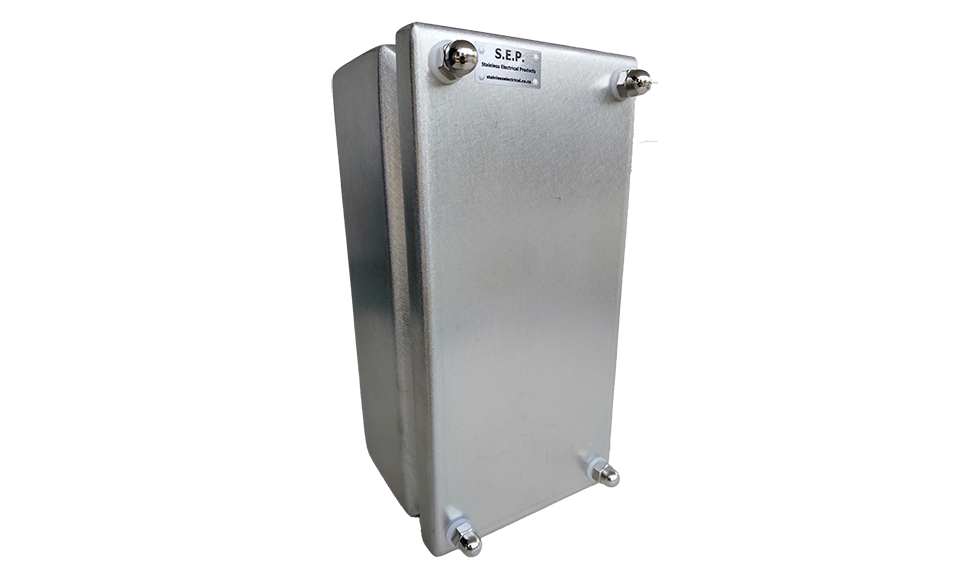

| SEP1002 | 200mmH x 100mmW x 85mmD | N/A | SEP1002/D | SEP1002/G | SEP1302 |

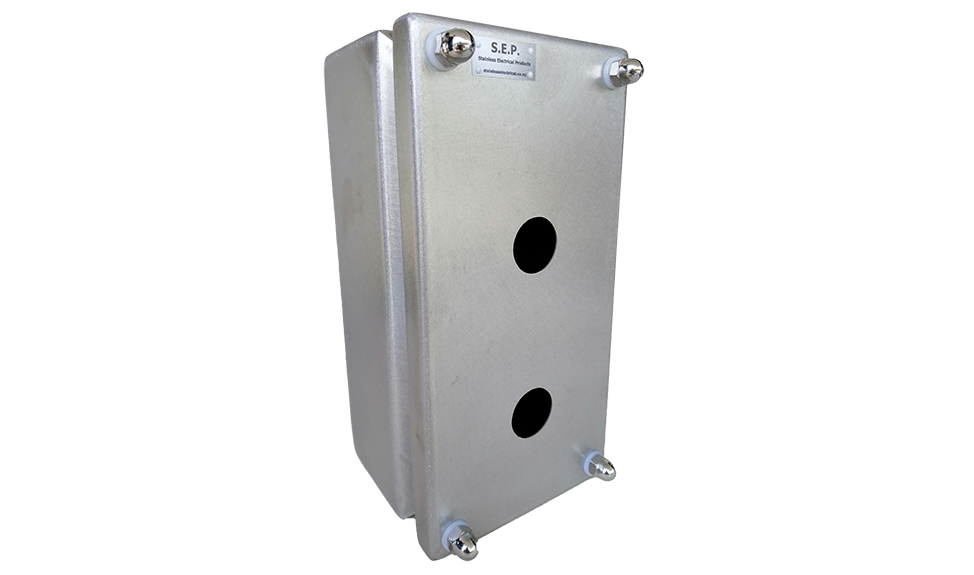

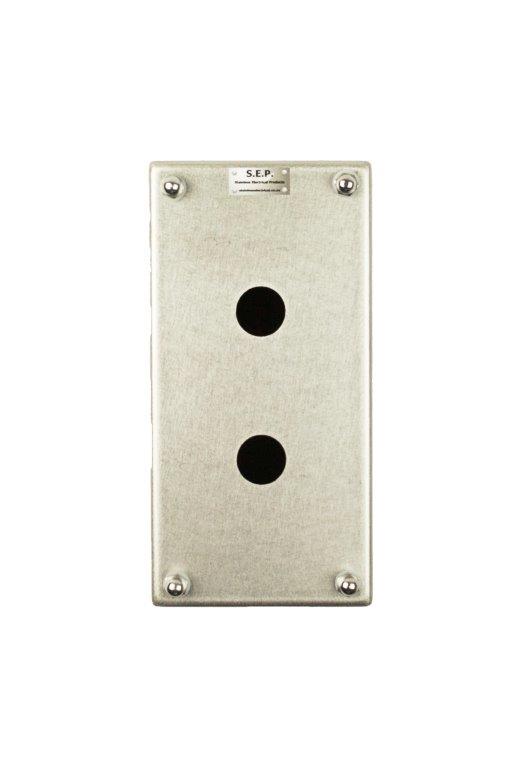

| SEP1002/2 | 200mmH x 100mmW x 85mmD | 2 x 22.5mm Push Button entry in lid | N/A | N/A | SEP1302/2 |

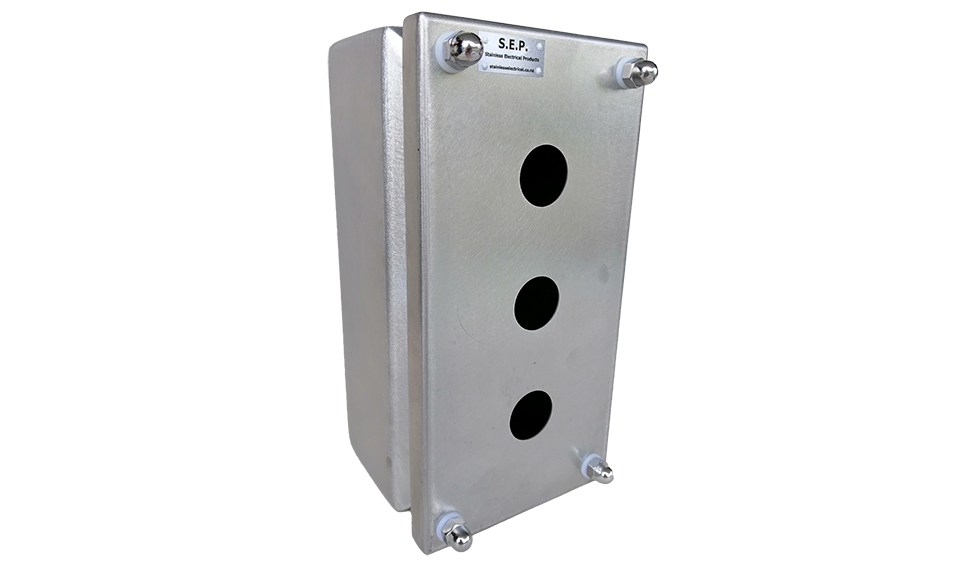

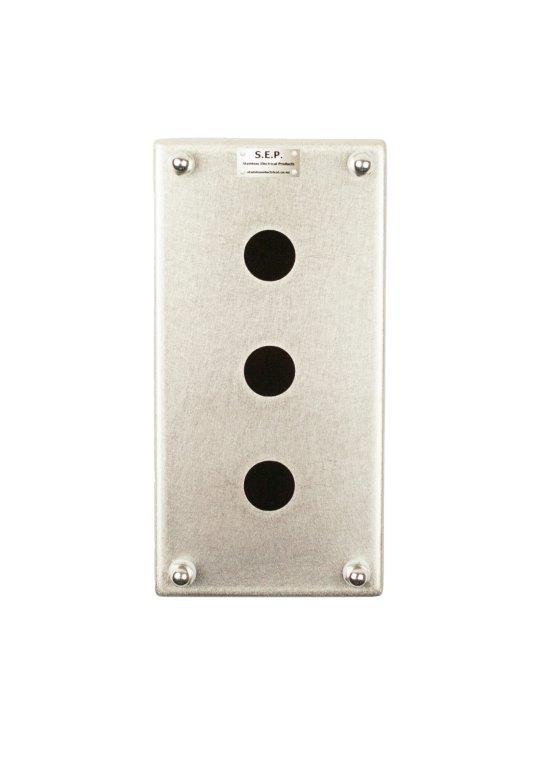

| SEP1002/3 | 200mmH x 100mmW x 85mmD | 3 x 22.5mm Push Button entry in lid | N/A | N/A | SEP1302/3 |
| 304 PART NO. | DIMENSIONS | PUSH BUTTON | 316 PART NO. |

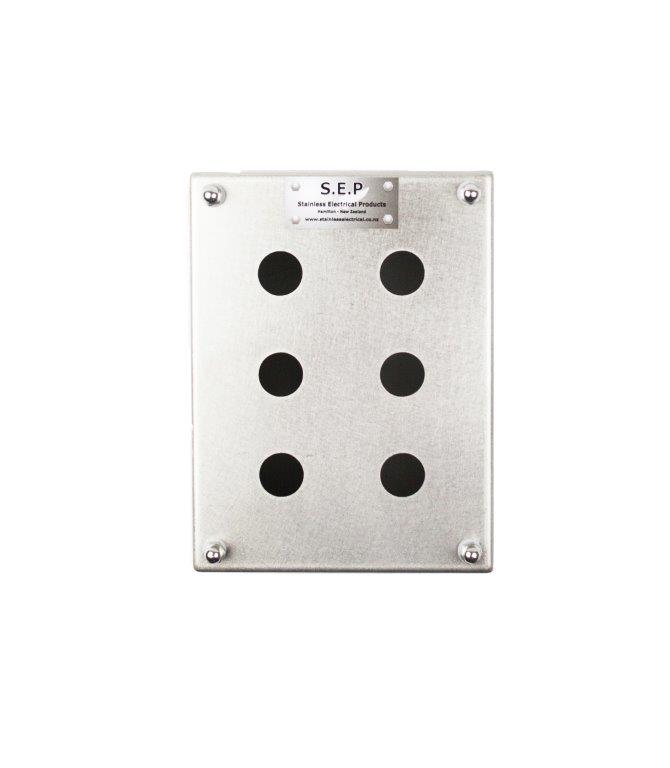

| SEP1010/6 | 200mmH x 150mmW x 85mmD | 6 x 22.5mm Push Button entry in lid | TBC |

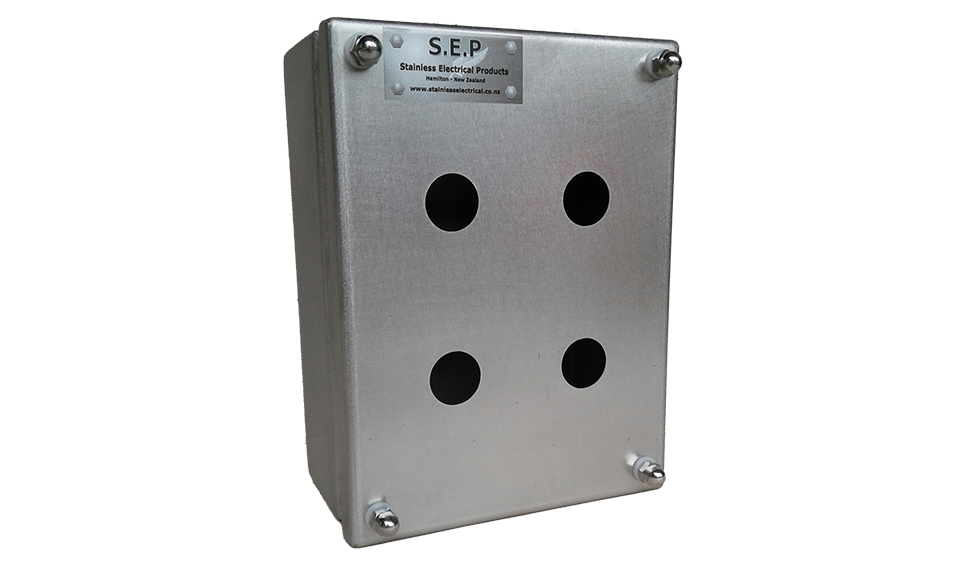

| SEP1010/4 | 200mmH x 150mmW x 85mmD | 4 x 22.5mm Push Button entry in lid | TBC |

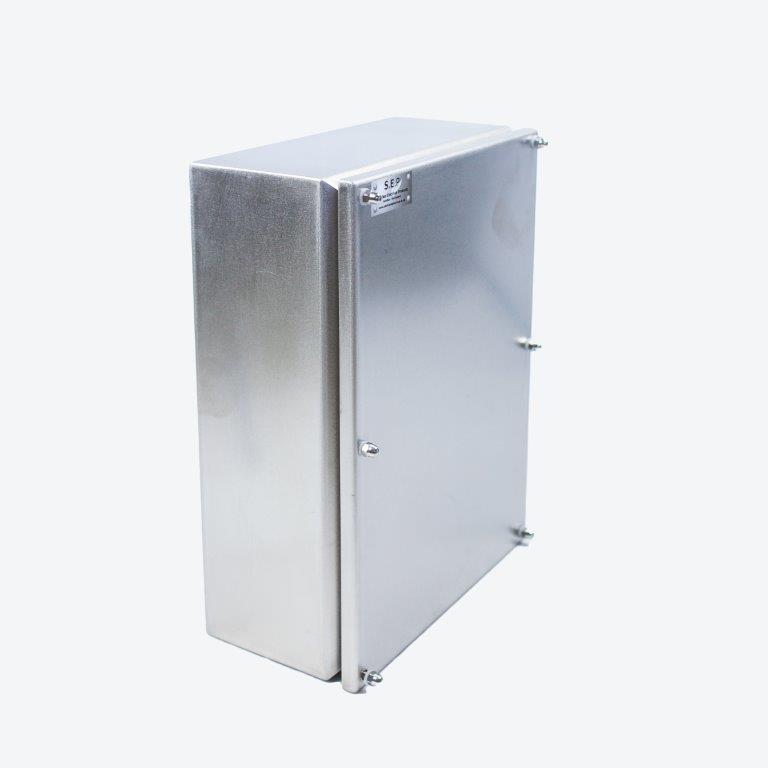

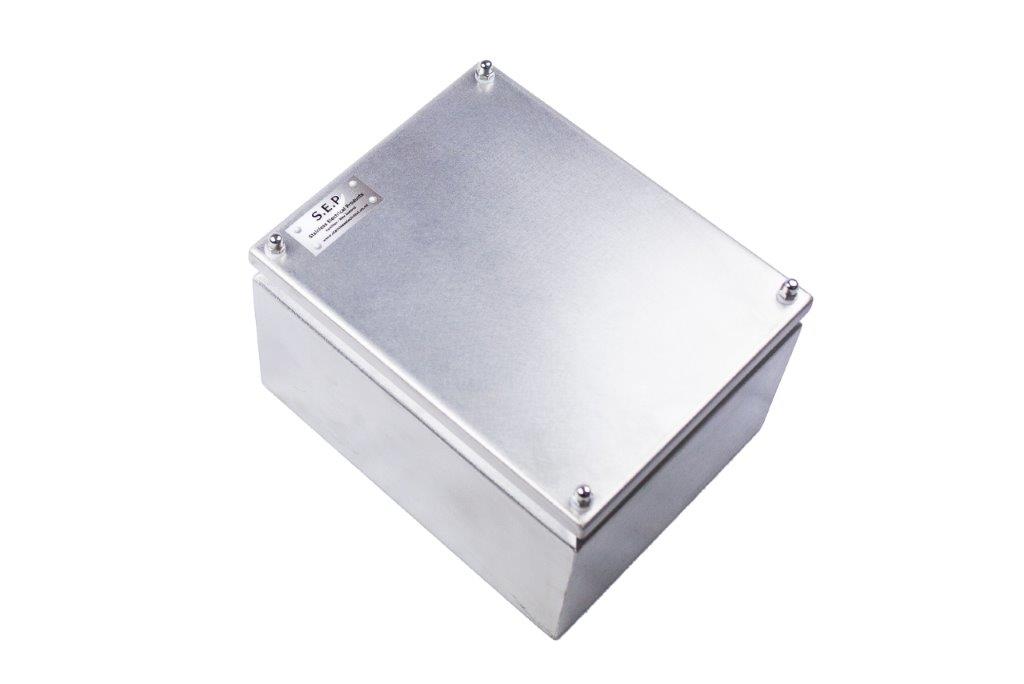

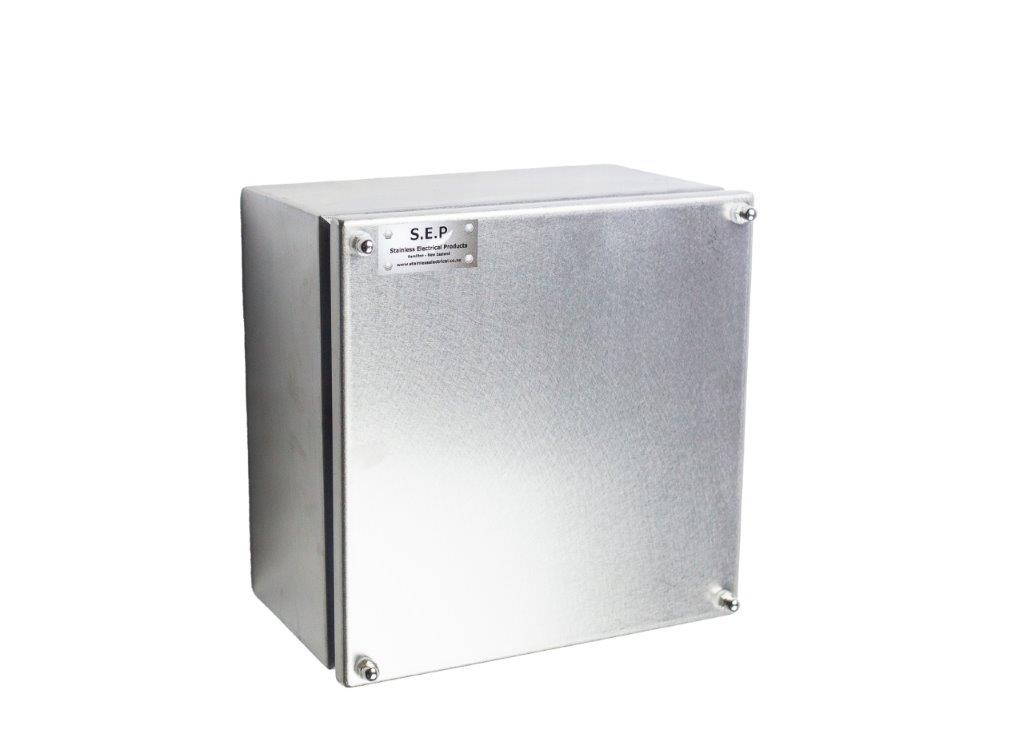

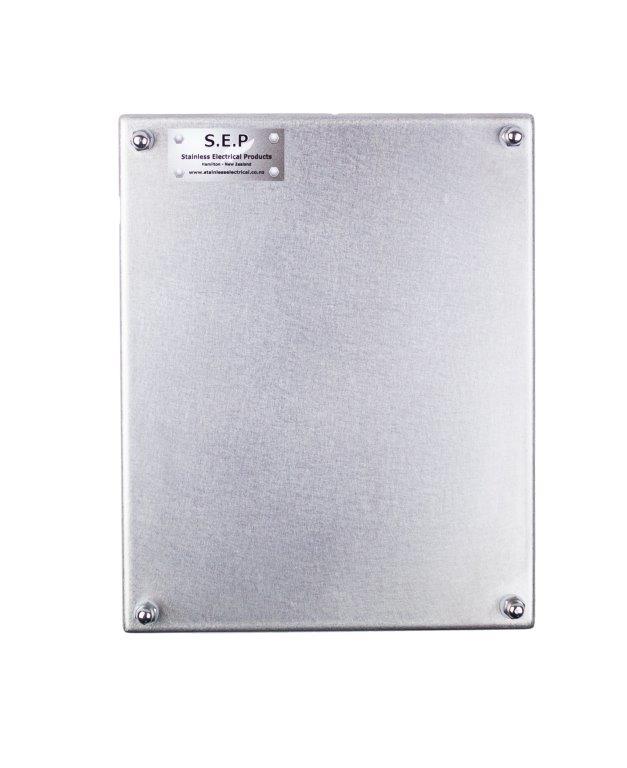

Hygienic Food Grade Enclosure – IP66 Rated
| 304 PART NO. | DIMENSIONS | WITH DIN NO. | WITH GEAR PLATE NO. | 316 PART NO. |

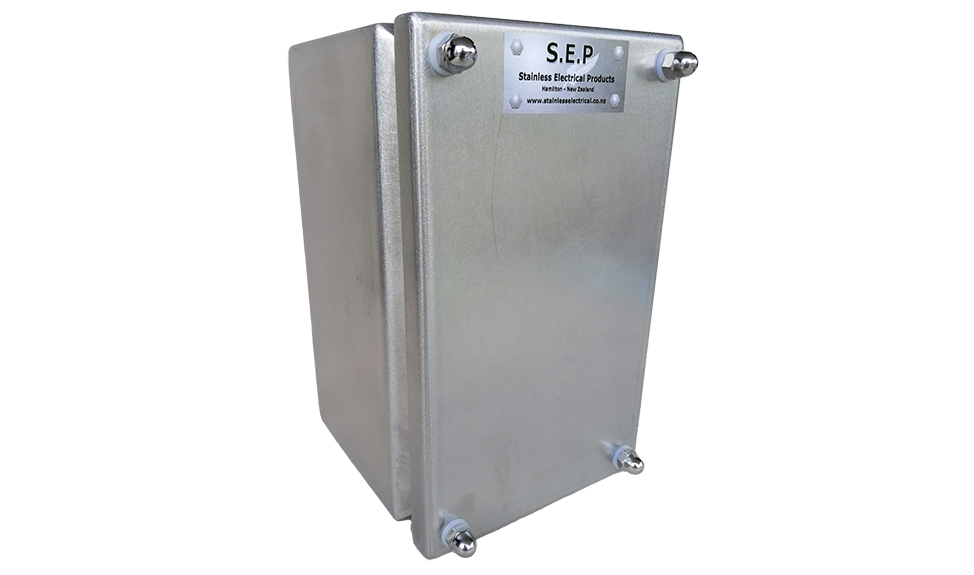

| SEP1003 | 200mmH x 120mmW x 125mmD | SEP1003/D | SEP1003/G | SEP1303 |
| SEP1004 | 250mmH x 200mmW x 150mmD | SEP1004/D | SEP1004/G | SEP1304 |
| SEP1005 | 300mmH x 250mmW x 150mmD | SEP1005/D | SEP1005/G | SEP1305 |
| SEP1006 | 300mmH x 300mmW x 150mmD | SEP1006/D | SEP1006/G | SEP1306 |
| SEP1007 | 400mmH x 300mmW x 150mmD | SEP1007/D | SEP1007/G | SEP1307 |
| SEP1008 | 600mmH x 400mmW x 200mmD | SEP1008/D | SEP1008/G | SEP1308 |
| SEP1009 | 800mmH x 600mmW x 250mmD | SEP1009/D | SEP1009/G | SEP1309 |
| SEP1010 | 200mmH x 150mmW x 85mmD | SEP1010/D | SEP1010/G | SEP1310 |
