- SEP Quick fit components attach easily by using Pliers to bend foldable tabs over the mesh frame.
- SEP Quick fit wire mesh components combine the benefits of easy installation, versatility, cost-effectiveness, durability, and safety. These advantages make them an attractive option across various industries, from industrial and architectural to agricultural applications.
![](https://sep.co.nz/wp-content/uploads/2024/07/Bracket-examples-1024x718.jpg)
SEP2999
Top Mounting Enclosure Bracket 65mm x 85mm with 4 x 8mm holes.
- Suitable for all widths of Mesh.
- Securely fastened by foldable tabs.
![](https://sep.co.nz/wp-content/uploads/2024/05/Top-Bracket-1024x532.png)
Components for 60mm High Mesh
SEP3010
![](https://sep.co.nz/wp-content/uploads/2019/11/28-3.png)
Quick Fit small joining clamp for connecting mesh sections together.
SEP3011
![](https://sep.co.nz/wp-content/uploads/2019/11/27-1.png)
Quick Fit large joining clamp for connecting mesh sections together.
SEP3012
![](https://sep.co.nz/wp-content/uploads/2019/11/26-1.png)
Quick Fit hanging or hold down bracket.
SEP3013
Quick Fit Joining/Hanging/Hold Down Bracket.
This Bracket simultaneously joins two sections of mesh together.
![](https://sep.co.nz/wp-content/uploads/2024/07/Picture4.png)
SEP3014
![](https://sep.co.nz/wp-content/uploads/2024/07/20240703_135314-768x1024.jpg)
Quick Fit 20mm Space Side Fitting Wall Mount Bracket
SEP3016
![](https://sep.co.nz/wp-content/uploads/2024/07/20240703_135451-768x1024.jpg)
Quick Fit 50mm Space Side Fitting Wall Mount Bracket
SEP3017
![](https://sep.co.nz/wp-content/uploads/2024/07/20240702_133836-768x1024.jpg)
Quick Fit Conduit Support – 145mm Length. Customer to state pipe diameter 1”, 1 ½” -2”,2 ½ “,3” or 4”
SEP3018
![](https://sep.co.nz/wp-content/uploads/2024/07/20240703_145549-removebg-preview.png)
Quick Fit Centre Divider
1.2m Length
For Cable partitioning.
SEP3019
![](https://sep.co.nz/wp-content/uploads/2024/04/Picture1-removebg-preview.png)
Quick Fit Mesh Dropper Support
For 60/100/150mm mesh
90 degrees
SEP3019/45
![](https://sep.co.nz/wp-content/uploads/2024/07/Picture3-1.png)
Quick Fit Mesh Dropper Support
For 60/100/150mm mesh
45 degrees
SEP3020
![](https://sep.co.nz/wp-content/uploads/2024/07/20MM1.jpg)
Quick Fit Base Mount Bracket
20mm depth
Suitable for 60x60mm and 60x30mm mesh
Fits to the base of mesh
SEP3021
![](https://sep.co.nz/wp-content/uploads/2024/07/50MM1-1024x921.jpg)
Quick Fit Base Mount Bracket
50mm depth
Suitable for 60x60mm and 60x30mm mesh
Fits to the base of mesh
SEP3022
![](https://sep.co.nz/wp-content/uploads/2020/07/SEP3022-1.jpg)
Quick Fit Base Mount Bracket
20mm depth
Suitable for 100x60mm and 100x30mm mesh
Fits to the base of mesh
SEP3023
![](https://sep.co.nz/wp-content/uploads/2020/07/SEP3023-3.jpg)
Quick Fit Base Mount Bracket
50mm depth
Suitable for 100x60mm and 100x30mm mesh
Fits to the base of mesh
SEP3024
![](https://sep.co.nz/wp-content/uploads/2020/07/SEP3024.jpg)
Quick Fit Base Mount Bracket
20mm depth
Suitable for 150/200mm mesh
Fits to the base of mesh
SEP3025
![](https://sep.co.nz/wp-content/uploads/2020/07/SEP3025.jpg)
Quick Fit Base Mount Bracket
50mm depth
Suitable for 150/200mm mesh
Fits to the base of mesh
SEP3026
![](https://sep.co.nz/wp-content/uploads/2020/07/SEP3026.jpg)
Quick Fit Base Mount Bracket
20mm depth
Suitable for 300/400/450/500/600mm mesh
Fits to the base of mesh
SEP3027
![](https://sep.co.nz/wp-content/uploads/2020/07/SEP3027.jpg)
Quick Fit Base Mount Bracket
50mm depth
Suitable for 300/400/450/500/600mm mesh
Fits to the base of mesh

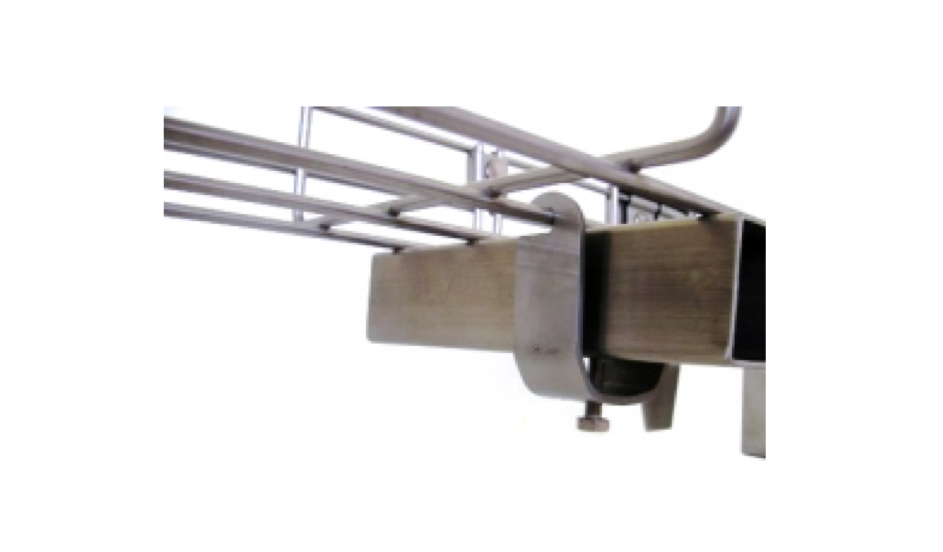

Quick Fit Box Section Holding Clamp
![](https://sep.co.nz/wp-content/uploads/2024/04/Box-3.png)
PART NO. | BOX SECTION WIDTH |
SEP3030 | 40mm |
SEP3031 | 50mm |
SEP3032 | 75mm |
SEP3033 | 100mm |

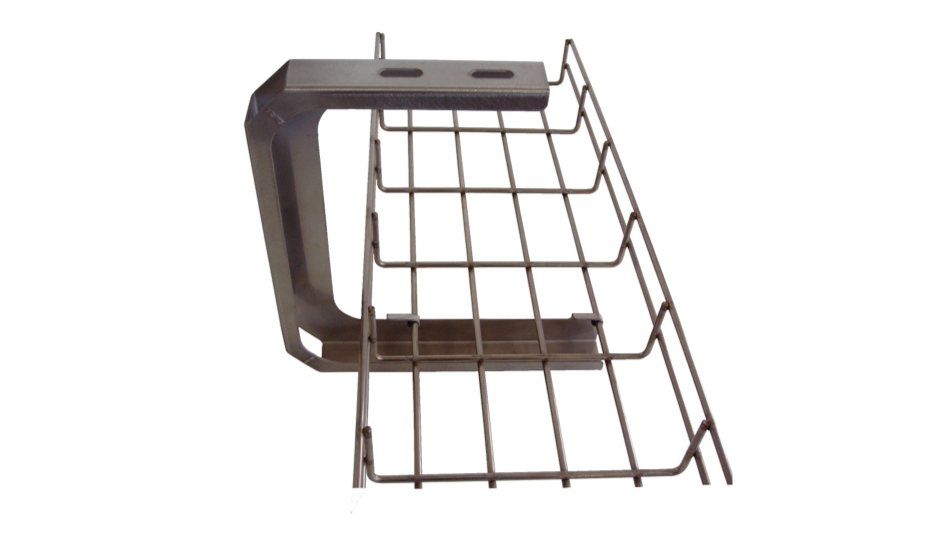

Quick Fit Ceiling Mounting Bracket
![](https://sep.co.nz/wp-content/uploads/2024/07/Ceiling-Bracket.png)
PART NO. | MESH WIDTH |
SEP3034 | 100mm |
SEP3035 | 150mm |
SEP3036 | 200mm |
SEP3037 | 300mm |

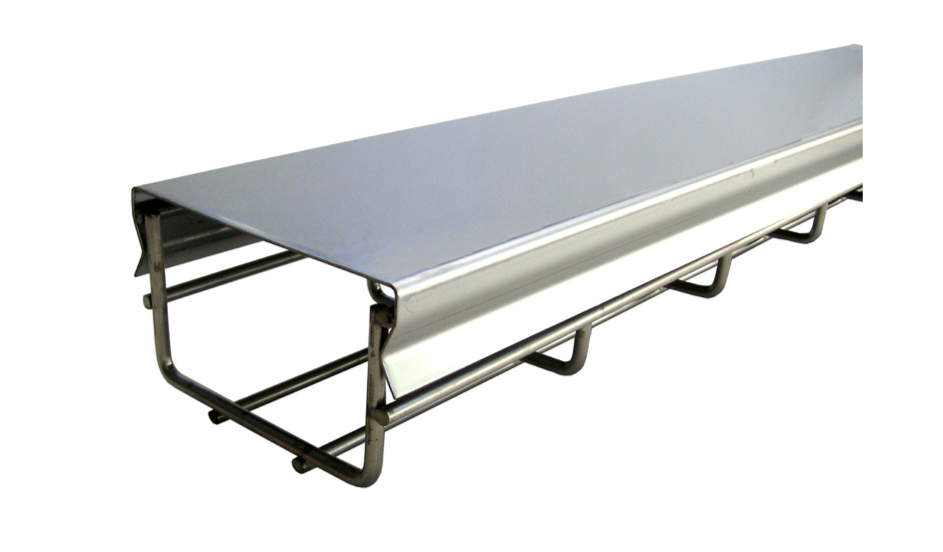

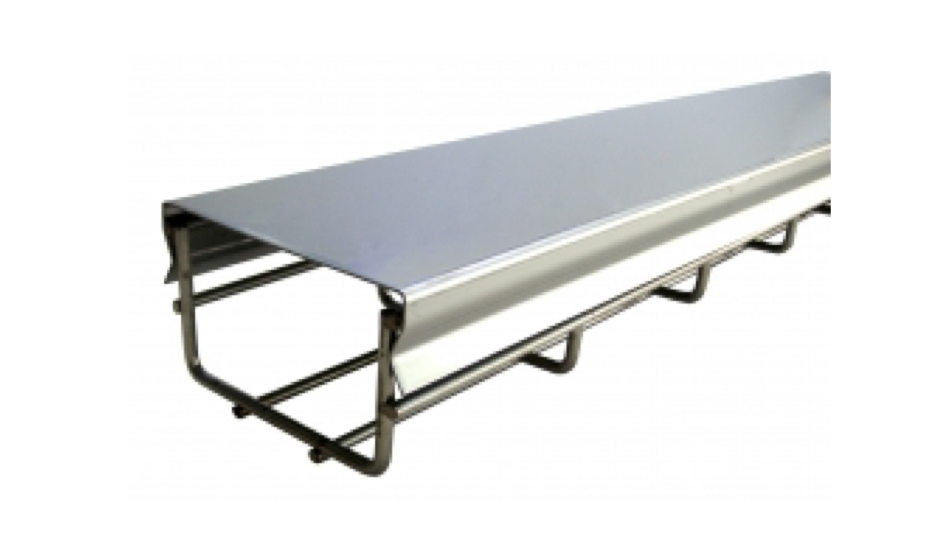

Quick Fit Flat Cover
![](https://sep.co.nz/wp-content/uploads/2024/04/flat-cover-1024x590.png)
Quick fit flat covers are fabricated from 1.2mm Stainless Steel and come in 1200mm lengths.
PART NO. | MESH WIDTH |
SEP3040 | 60mm |
SEP3041 | 100mm |
SEP30415 | 150mm |
SEP3042 | 200mm |
SEP3043 | 300mm |

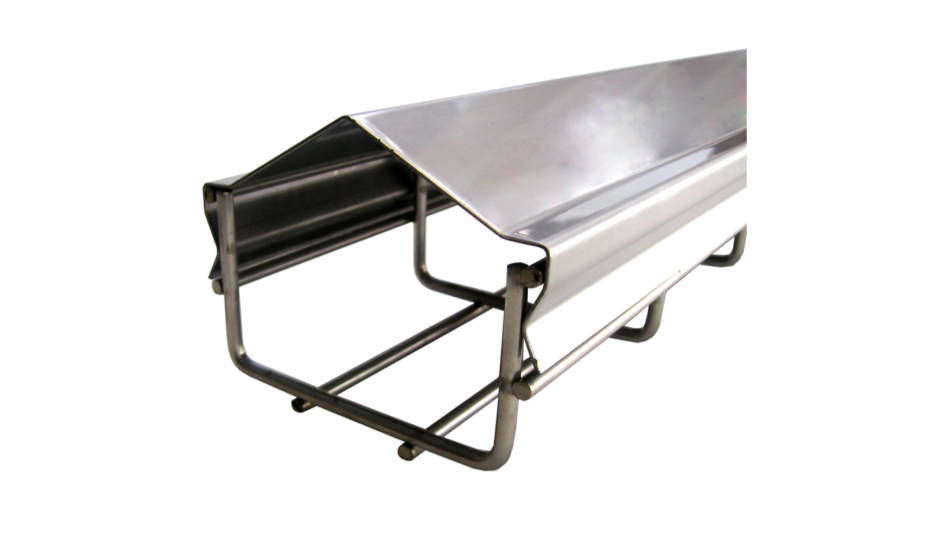

Quick Fit Peaked Cover
![](https://sep.co.nz/wp-content/uploads/2024/04/QUICK-FIT-PEAK-1024x636.png)
Quick fit peaked covers are fabricated from 1.2mm Stainless Steel and come in 1200mm lengths.
PART NO. | MESH WIDTH |
SEP3040/P | 60mm |
SEP3041/P | 100mm |
SEP30415/P | 150mm |
SEP3042/P | 200mm |
SEP3043/P | 300mm |

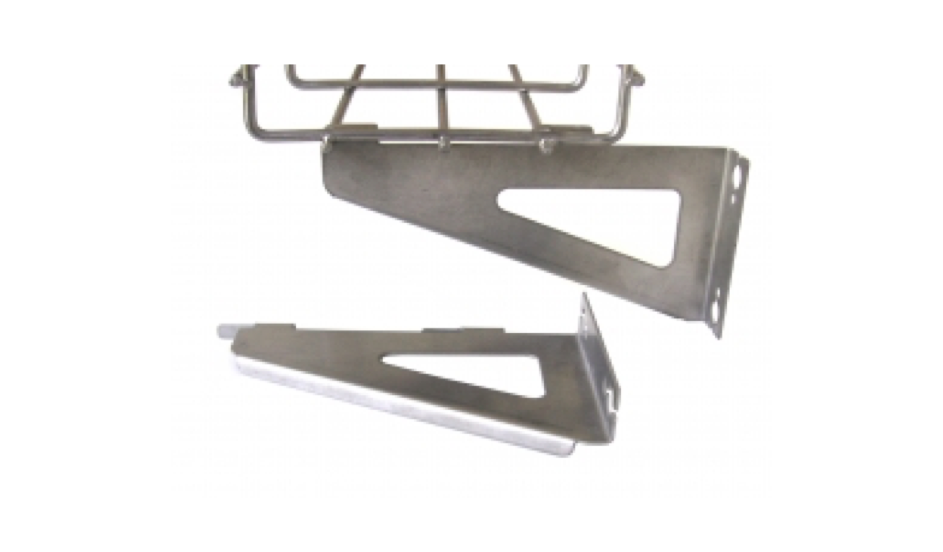

Quick Fit Cantilever Bracket
![](https://sep.co.nz/wp-content/uploads/2024/04/Cantilever-Banner.png)
PART NO. | MESH WIDTH | WALLSPACE |
SEP3050 | 60mm | 20mm |
SEP3051 | 60mm | 50mm |
SEP3052 | 100mm | 20mm |
SEP3053 | 100mm | 50mm |
SEP3054 | 150mm | 20mm |
SEP3055 | 150mm | 50mm |
SEP3056 | 200mm | 20mm |
SEP3057 | 200mm | 50mm |
Components for 30mm High Mesh
SEP3009
![](https://sep.co.nz/wp-content/uploads/2024/04/spider-2.png)
Quick Fit Universal Coupling – Low Side
For holding two wires together on the side of 30mm high mesh
SEP3014/LS
![](https://sep.co.nz/wp-content/uploads/2020/07/SEP3014LS-1.jpg)
Quick Fit 20mm Space Side Fitting Wall Mount Bracket – Low Side
Fits on the side of 30mm high mesh
20mm depth
SEP3016/LS
![](https://sep.co.nz/wp-content/uploads/2020/07/SEP3016LS-1.jpg)
Quick Fit 50mm Space Side Fitting Wall Mount Bracket – Low Side
Fits on the side of 30mm high mesh
50mm depth
SEP3011/LS
![](https://sep.co.nz/wp-content/uploads/2024/07/Picture5.png)
Quick Fit Side Mounting Universal Coupling for connecting 60mm high mesh together
SEP3012/LS
![](https://sep.co.nz/wp-content/uploads/2024/07/Picture4-1.png)
Quick Fit hanging or hold down bracket.
1. Ease of Installation
- Simple Assembly: These components feature a modular design that allows for quick and straightforward assembly without the need for specialized tools or skilled labour.
- Time Efficiency: Reduced installation time translates to lower costs and faster project completion.
- Minimal Downtime: In scenarios where equipment or structures need to be operational quickly, quick fit systems help minimize downtime.
2. Flexibility and Versatility
- Customizable Designs: SEP Quick fit components can be easily adapted to different configurations and layouts, making them suitable for a variety of applications.
- Expandable Systems: Additional components can be added to expand the system or modify its functionality as requirements change.
3. Cost-Effective
- Reduced Labor Costs: The ease of installation means less time spent on assembly, leading to savings in labor costs.
- Lower Maintenance: SEP quick fit wire mesh components are designed to be durable and require minimal maintenance, reducing long-term costs.
4. Durability and Strength
- Robust Construction: Made from Grade 304 or Grade 316 on request, these components are designed to withstand harsh conditions & heavy loads
- Corrosion Resistance: Fabricated from Stainless Steel SEP wire mesh systems are built to resist corrosion, extending their lifespan in challenging environments.
5. Safety and Compliance
- Enhanced Safety: SEP Quick fit systems include safety features like smooth edges and secure fittings to reduce the risk of accidents.
- Compliance: SEP Mesh Systems and components are designed to meet industry standards and regulations, ensuring compliance with safety and operational requirements.
6. Aesthetic Appeal
- Neat Appearance: The uniformity and clean lines of wire mesh components can contribute to a professional and aesthetically pleasing appearance.
- Consistent Quality: SEP manufacturing process ensures a consistent and high-quality finish.
7. Reusability and Eco-Friendliness
- Reusability: These components can often be disassembled and reused in different projects, making them an eco-friendly option.
- Sustainable Materials: SEP quick fit wire mesh components are made from recyclable materials, contributing to sustainability efforts.
8. Specific Applications
- Industrial Use: Commonly used in cable tray systems, barriers, and guards in industrial settings.
