Enclosures - IP66 Rated, Pin Lock Hinged Door Enclosures - IP65 Rated

Pin Lock Hinged Door Enclosures with an IP65 rating provide excellent protection, durability, and ease of use, making them an ideal choice for a wide range of applications

Manufactured from1.2mm Grade 304 Stainless Steel or Grade 316 on request these enclosures are corrosion resistant in natural and food atmospheres.

Each enclosure is cut, folded, seam welded than polished to 180 grit level grain finish.

All of these enclosures come complete with an EPDM Sealing Gasket and a Formica gear plate.

S.E.P Enclosures also have an M6 Earthing stud welded to the body and door.

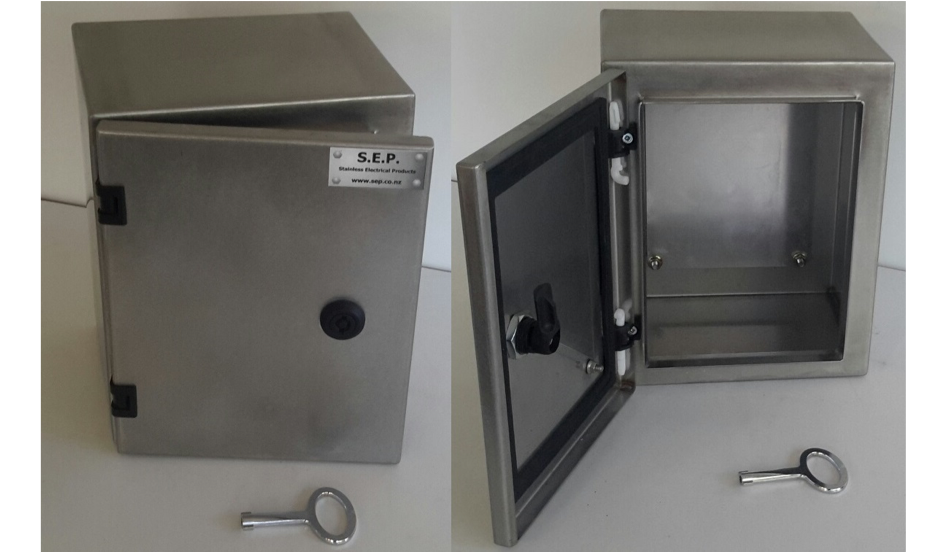

The door is fitted with 2 Polyamide semi-concealed hinges and secured by a Polyamide Pin Lock, the door can be removed by removing hinge pins.

Mounting brackets are available on request.

GRADE 304 PART NO.DIMENSIONSGRADE 316 PART NO.
SEP1204250mmH x 200mmW x 150mmDSEP1604
SEP1205300mmH x 250mmW x 150mmDSEP1605
SEP1206300mmH x 300mmW x 150mmDSEP1606
SEP1207400mmH x 300mmW x 150mmDSEP1607
SEP1207/S400mmH x 300mmW x 200mmDSEP1607/S

Application Benefits

High Level of Protection:

  • IP65 Rating: Ensures complete protection against dust ingress and water jets from any direction, making it suitable for challenging environments.
  • Enhanced Security: The pin lock mechanism provides robust security, preventing unauthorized access.

Durability:

  • Corrosion Resistance: Often made from materials like stainless steel, which resist rust and corrosion, ensuring longevity even in harsh conditions.
  • Sturdy Construction: Built to withstand physical impacts and environmental stressors, ensuring a long lifespan.

Ease of Access:

  • Hinged Door: Allows for easy access to the interior components, simplifying maintenance and inspection tasks.
  • Removable Door: The door can be removed by taking out the hinge pins, facilitating full access when needed.

Weather Resistance:

  • Outdoor Suitability: Can be used in outdoor settings due to its resistance to dust, rain, and other environmental factors.
  • Temperature Tolerance: Suitable for use in a wide range of temperatures, ensuring reliable performance in various climates.

Versatility:

  • Wide Applications: Ideal for use in industrial, commercial, and residential settings where protection and accessibility are crucial.
  • Customization Options: Often available with additional features like mounting brackets, gear plates, and different material grades (e.g., 304 or 316 stainless steel).

Safety:

  • Earthing Stud: Typically includes an earthing stud to ensure proper grounding, enhancing safety and compliance with electrical standards.
  • Secure Closure: The pin lock mechanism provides a secure closure, reducing the risk of accidental openings and ensuring the enclosure stays sealed.

Maintenance:

  • Low Maintenance: The robust construction and high-quality materials reduce the need for frequent maintenance.
  • Easy Cleaning: Smooth surfaces and resistant materials make the enclosures easy to clean and maintain.

Aesthetic Appeal:

  • Professional Look: Offers a clean, professional appearance suitable for visible installations in both industrial and public areas.
  • Customization: Can be polished or painted to match the aesthetic requirements of the installation site.
