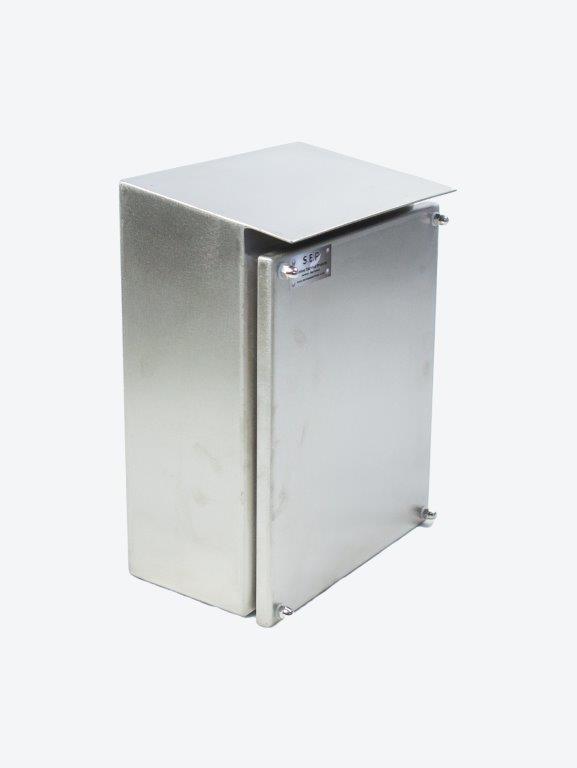

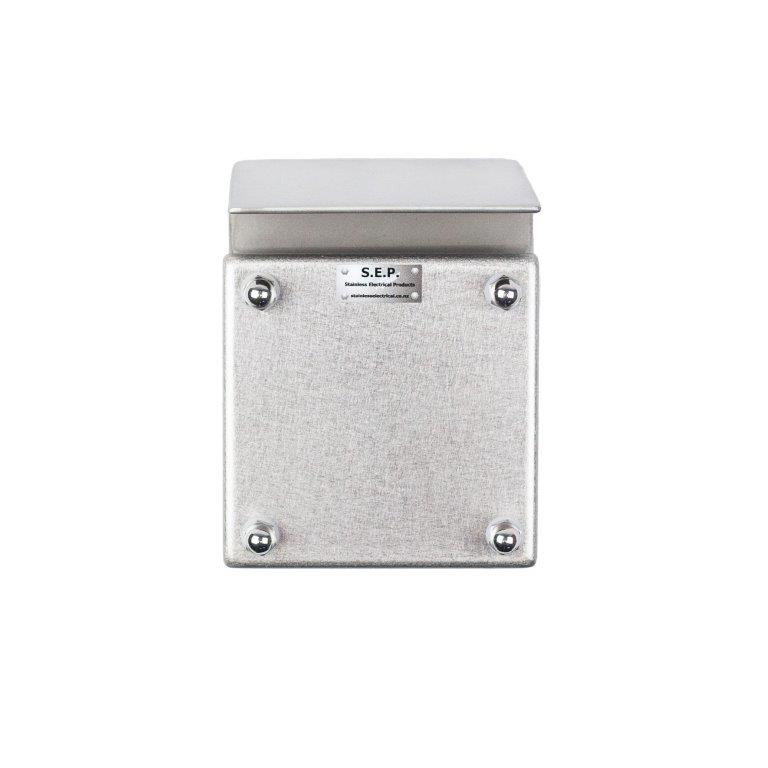

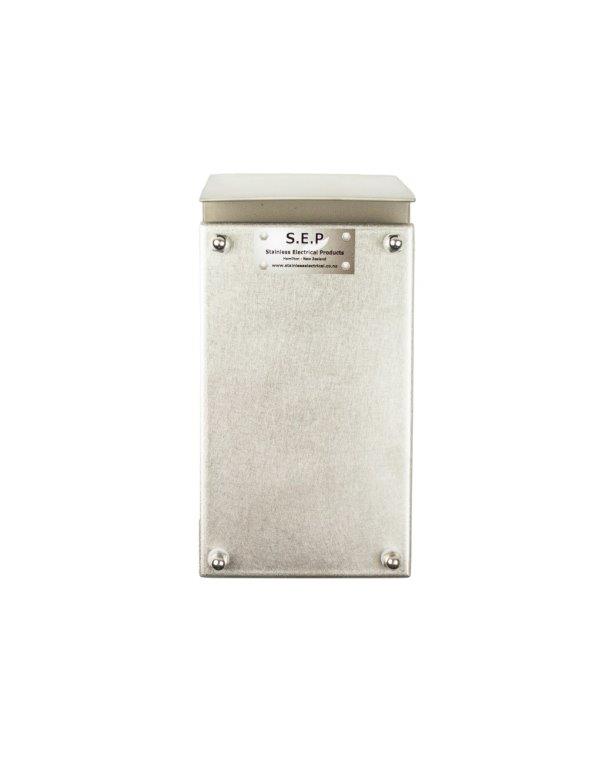

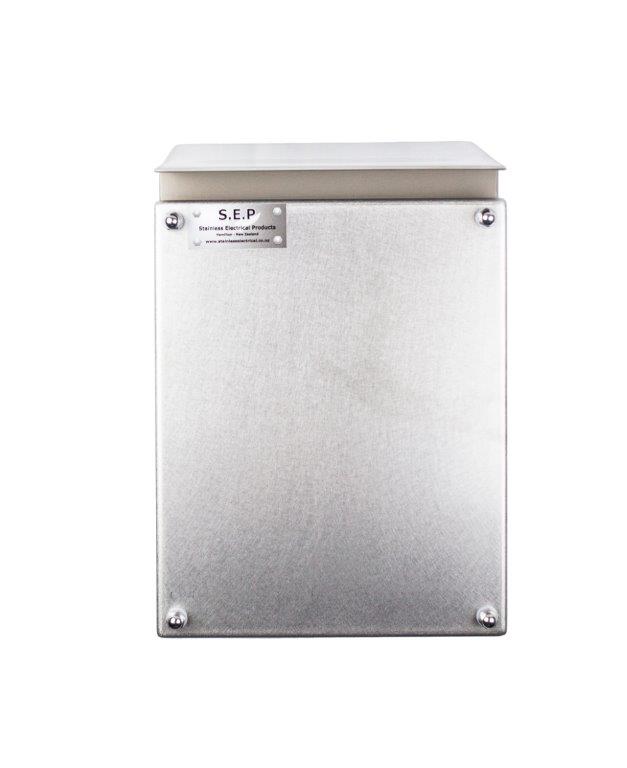

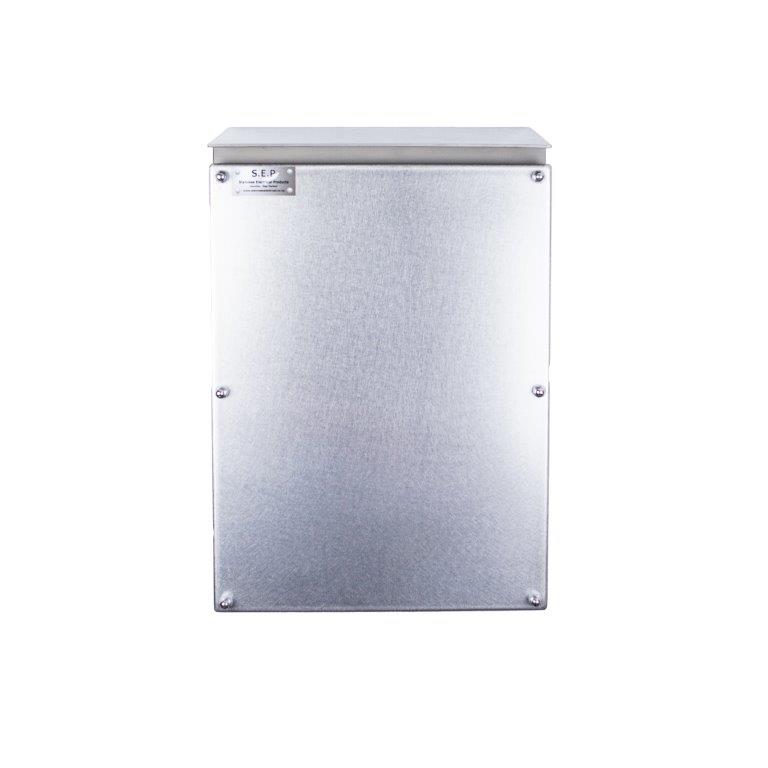

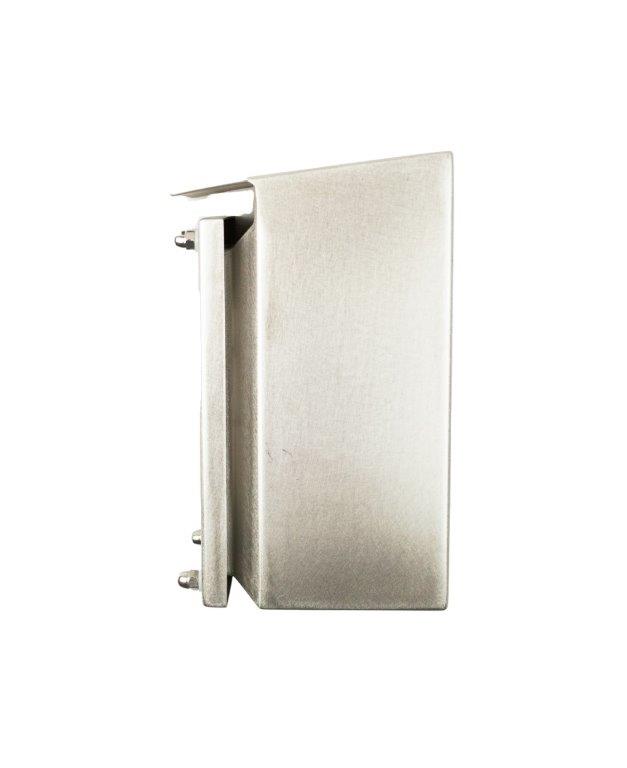

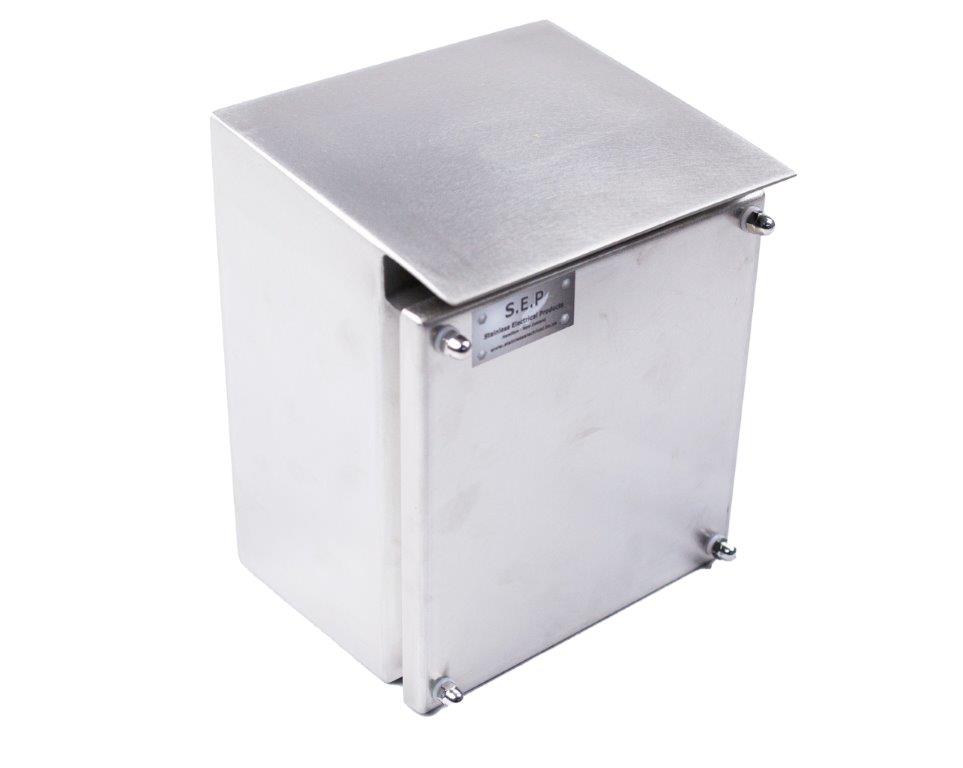

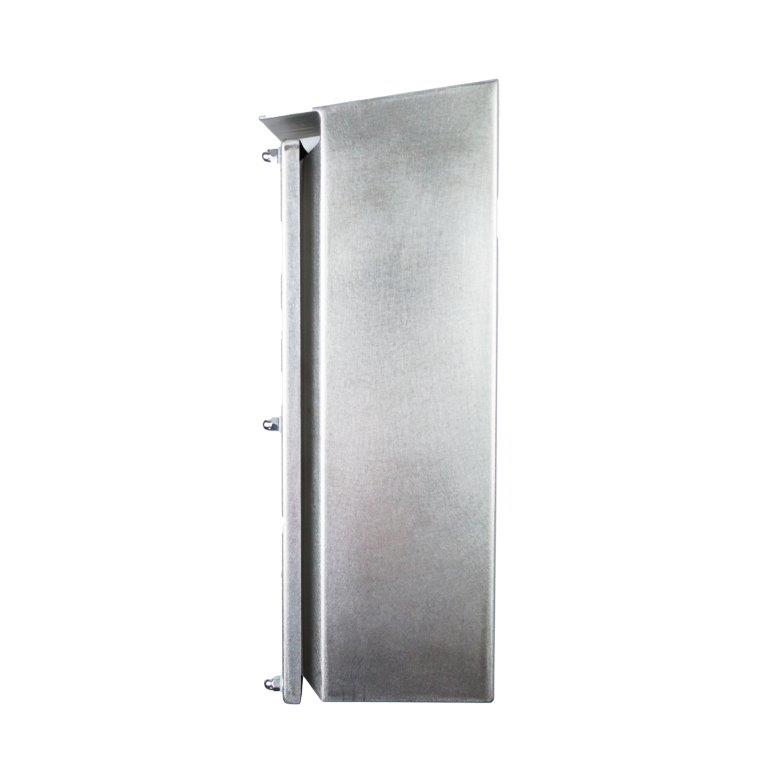

Enclosures - IP66 Rated, Hygienic Food Grade Enclosure – IP66 Rated Sloping Roof

Manufactured from1.2mm Grade 304 Stainless Steel or Grade 316 on request these enclosures are corrosion resistant in natural and food atmospheres.

Each enclosure is cut, folded, seam welded than polished to 180 grit level grain finish.

These IP66 enclosures come complete with an EPDM Sealing Gasket with the option of a DIN Rail or Gear plate supplied.

PART NO.DIMENSIONSWITH DIN PART NO.WITH GEAR PLATE PART NO.
SEP1801100mmH x 100mmW x 85mmDSEP1801/DSEP1801/G
SEP1802200mmH x 100mmW x 85mmDSEP1802/DSEP1802/G
SEP1803200mmH x 120mmW x 125mmDSEP1803/DSEP1803/G
SEP1804250mmH x 200mmW x 150mmDSEP1804/DSEP1804/G
SEP1805300mmH x 250mmW x 150mmDSEP1805/DSEP1805/G
SEP1806300mmH x 300mmW x 150mmDSEP1806/DSEP1806/G
SEP1807400mmH x 300mmW x 150mmDSEP1807/DSEP1807/G
SEP1808600mmH x 400mmW x 200mmDSEP1808/DSEP1808/G
SEP1809800mmH x 600mmW x 250mmDSEP1809/DSEP1809/G
Enquiry

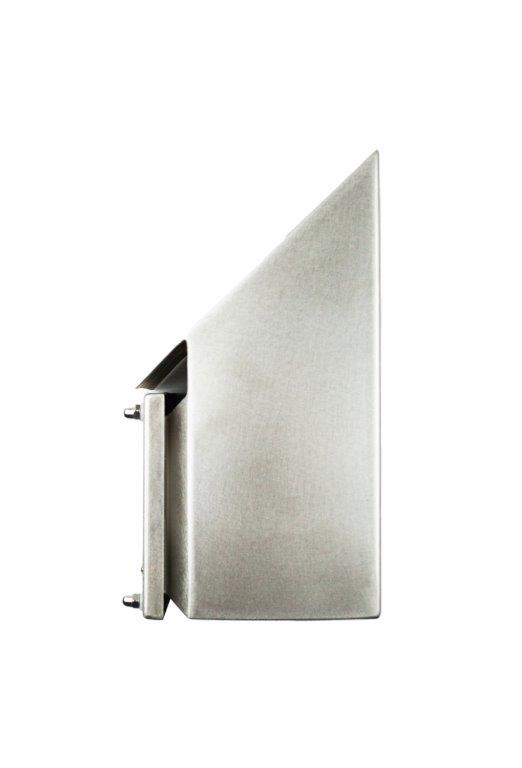

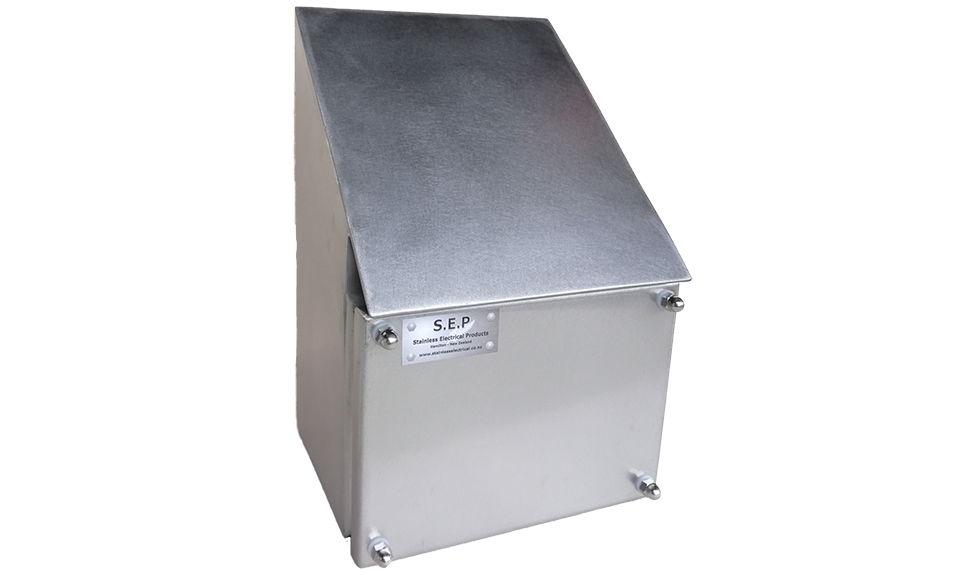

Hygienic Stainless Steel Pull Box: 45° Sloping Roof

PART NO.DIMENSIONSWITH DIN PART NO.WITH GEAR PLATE PART NO.
SEP4011300mmH x 200mmW x 150mmDSEP4011/DSEP4011/G
SEP4012300mmH x 250mmW x 150mmDSEP4012/DSEP4012/G
