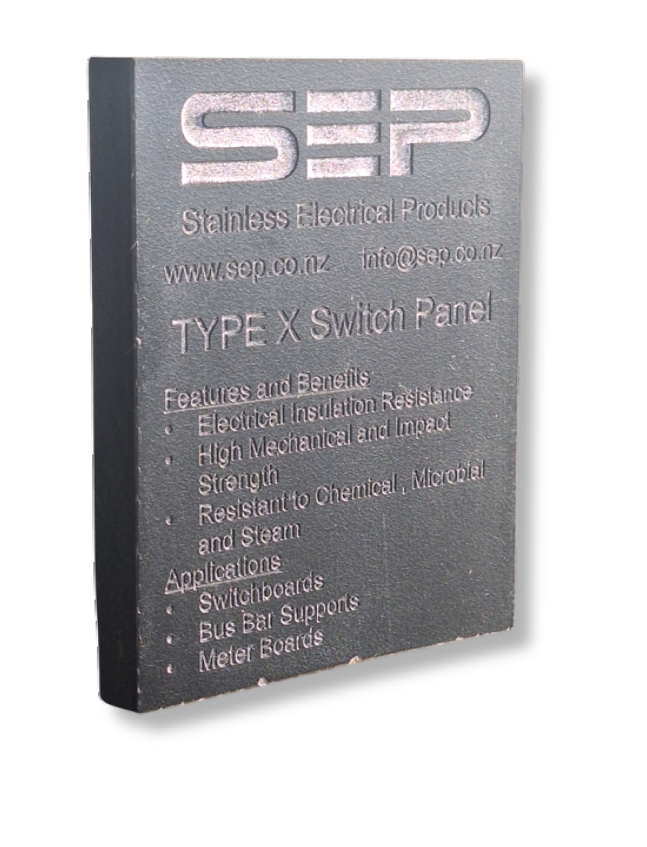

TYPE X Switch Panel – AS 1795 Compliant Electrical Insulation Board

The TYPE X Switch Panel is a high-performance phenolic resin laminated sheet, engineered to meet Australian Standard AS 1795-1983 (Type X). Designed for electrical insulation applications, this asbestos-free board combines excellent electrical, mechanical, and environmental resistance properties in a single durable product.

Key Features

  • Fully Cured Phenolic Resin Construction
  • Non-Conductive & Non-Sparking Surface
  • High Impact & Abrasion Resistance
  • Excellent Moisture & Steam Resistance
  • Chemically Inert & Non-Corrosive
  • Easy to Machine: Saw, Drill, Tap
  • Good Dimensional & Temperature Stability
  • Resistant to Microbial Attack
  • Low Water Absorption

Applications

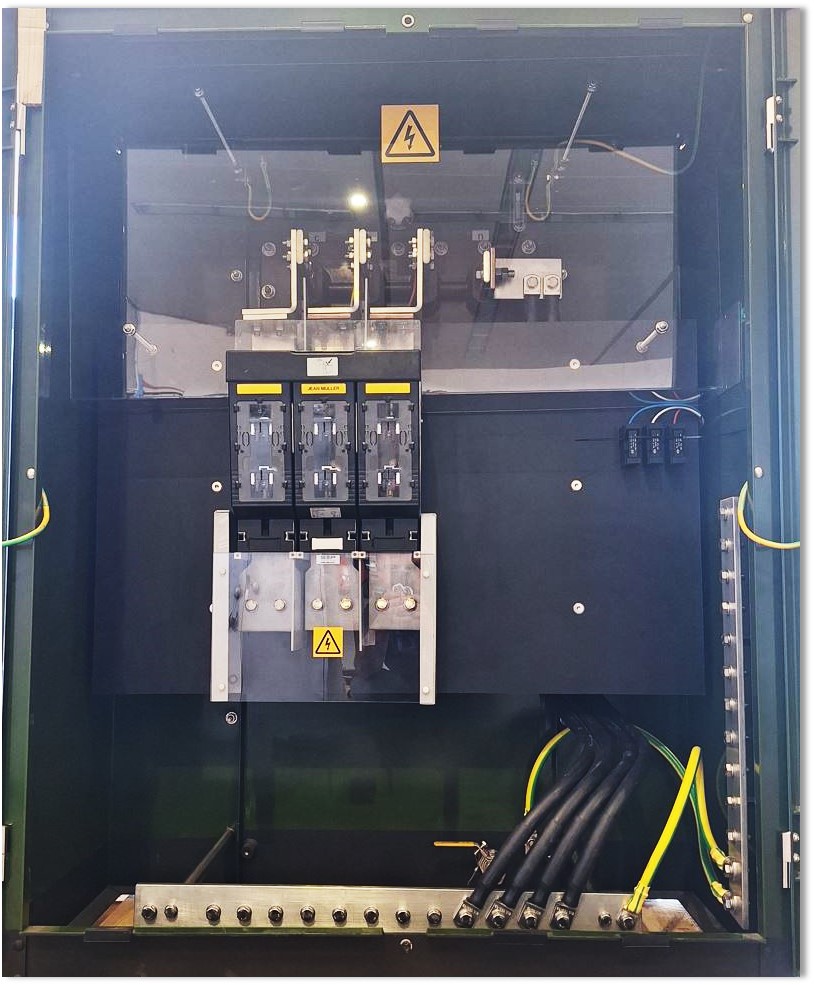

  • Switchboard Panels
  • Meter Boards
  • Bus Bar Supports
  • Arc Chutes
  • Mounting Electronic Meters, Dials, and Fuses

Available in either 6mm or 12mm

Full Sheet Size : 2400mm x 1200mm or cut to your requirements
