The S.E.P Human Machine Interface (HMI) Cabinet is manufactured from Grade 304 1.5mm Stainless Steel.
These cabinets can be wall mounted or bolted onto a pedestal and feature a removable keyboard shelf that enables alternative use of the module as an equipment protector in hazardous environments.
Cam locks are used to keep the Polycarbonate screen (350mmH x 600mmW) viewing door securely closed, while EPDM food grade ethylene/propylene is used to seal the door.
An internal Formica gear plate equipped with a double plug and two RJ45 outlets are also provided.
Air vents are positioned in each side of the unit to allow adequate ventilation for the hard drive and equipment.
Dimensions of the HMI Cabinet & the Pedestal can be altered to suit your requirements – Grade 316 Stainless Steel available on request.
SEP3730
SEP3731
| GRADE 304 PART NO. | DIMENSIONS | MOUNTING OPTION |
| SEP3730 | 600mmH x 750mmW x 450mmD | WALL MOUNTED |
| SEP3731 | 1630mmH x 750mmW x 450mmD | PEDESTAL STAND 1 Metre Tall |
HMI Protective cover
SEP3740

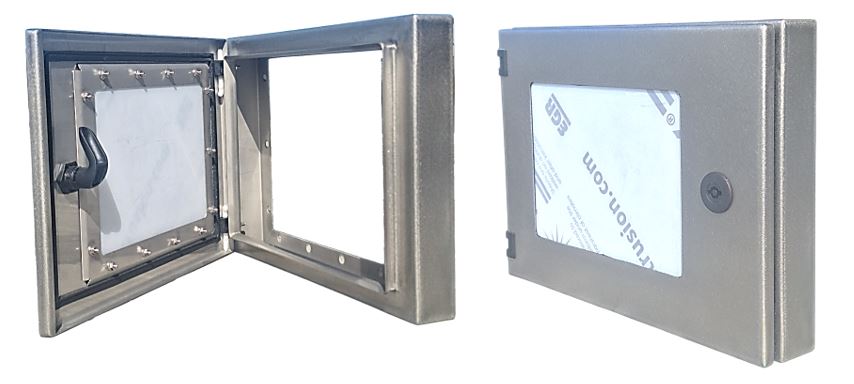

SEP HMI Protective covers are the easy bolt on solution to enhance your current Interface capabilities.
Stainless Steel HMI Cover
Our high-quality HMI (Human-Machine Interface) cover is proudly manufactured in New Zealand, designed to provide robust protection for industrial control systems in demanding environments.
Standard Specifications:
- Material: 1.2mm Grade 304 Stainless Steel (Grade 316 available on request for enhanced corrosion resistance)
- Dimensions: 350mm (L) x 60mm (D) x 255mm (H)
- Viewing Window: Durable 10-inch Perspex window for clear visibility of HMI screens
- Seal: Fitted with an EDM (Expanded Dual-Material) seal to ensure a secure, weather-resistant enclosure
- Locking System: Equipped with a double bit pin lock system for secure access control
Ideal for food processing, manufacturing, and industrial environments where hygiene, durability, and reliability are essential.
SEP can alter specifications to suit your requirements – Please contact us for more information.
