EasyLine range of fuse switch-disconnectors ensures high protection and reliable operation in critical power applications, distribution boards, switchboards, capacitor banks,
Save installation time and cost
A wide range of cable terminals and snap-on accessories make the installation easy and fast. EasyLine can be fitted into different distribution systems by means of busbar adapters.
Safety and reliability
The degree of protection from the front is IP30 in closed position and IP20 in open position. EasyLine fuse switch disconnectors can be padlocked in closed and open positions. Thanks to a functional and modern design, operation is easy and smooth.

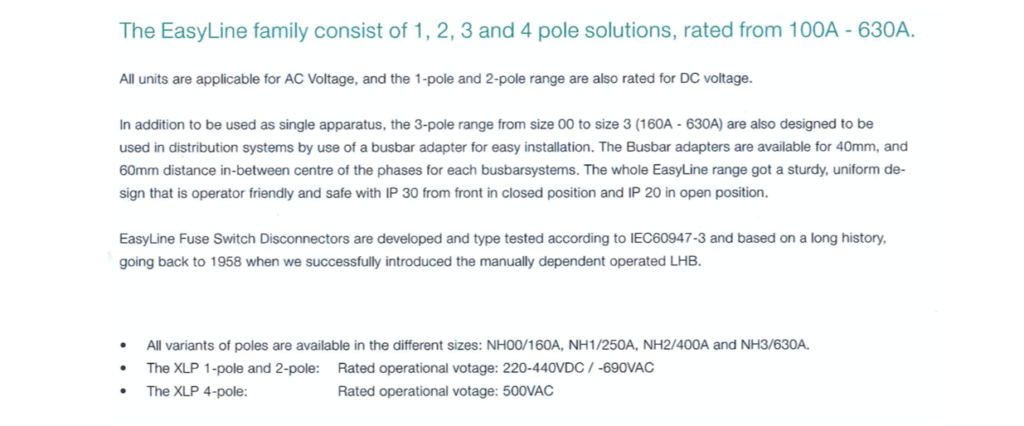

All variants of poles are available in the different sizes: NH00/160A, NH1/250A, NH2/400A and NH3/630A
The XLP 1-pole and 2-pole: Rated operational voltage 220-440VDC/-690VAC
The XLP 4-pole: Rated operational voltage 500VAC

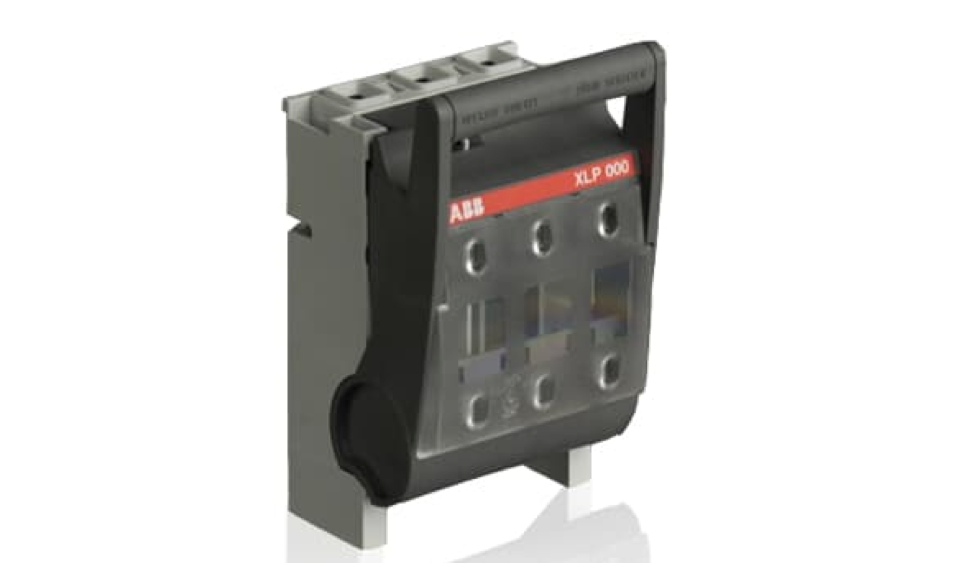

XLP000-6CC
XLP000, 3-pole, 100A, incl. 6 Cage Clamps

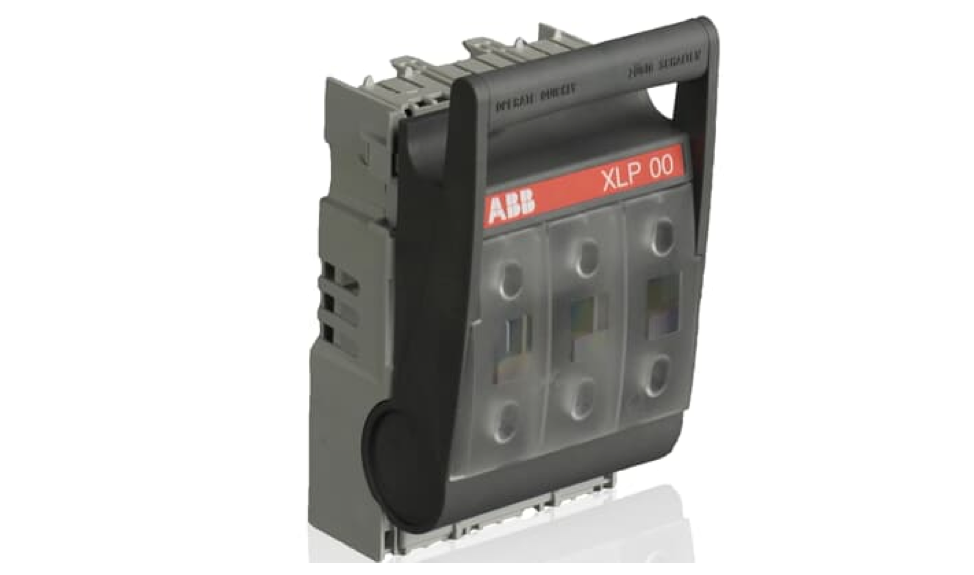

XLP00-6M8
XLP00, 3-pole, 160A, incl 6 x M8x16mm bolts

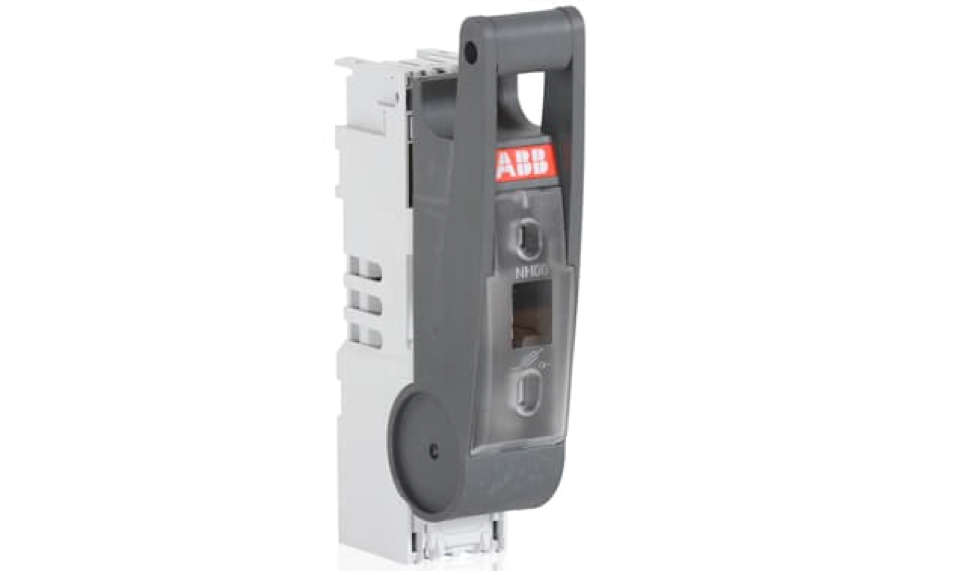

XLP00-1P-2M8
XLP00, 1-pole, 160A, incl. 2 x M8 bolts

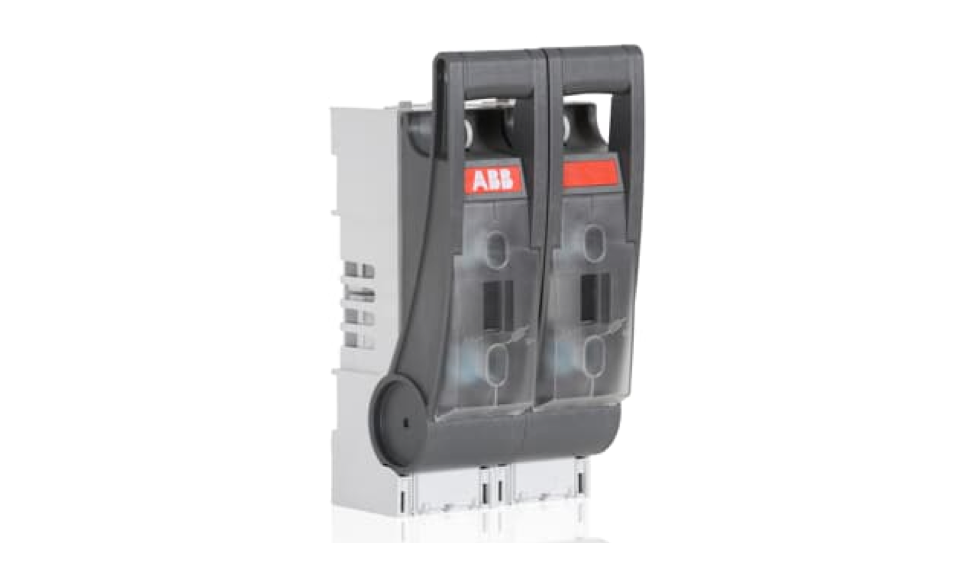

XLP00-2P-4M8
XLP00, 2-pole, 160A, incl. 4 x M8 bolts

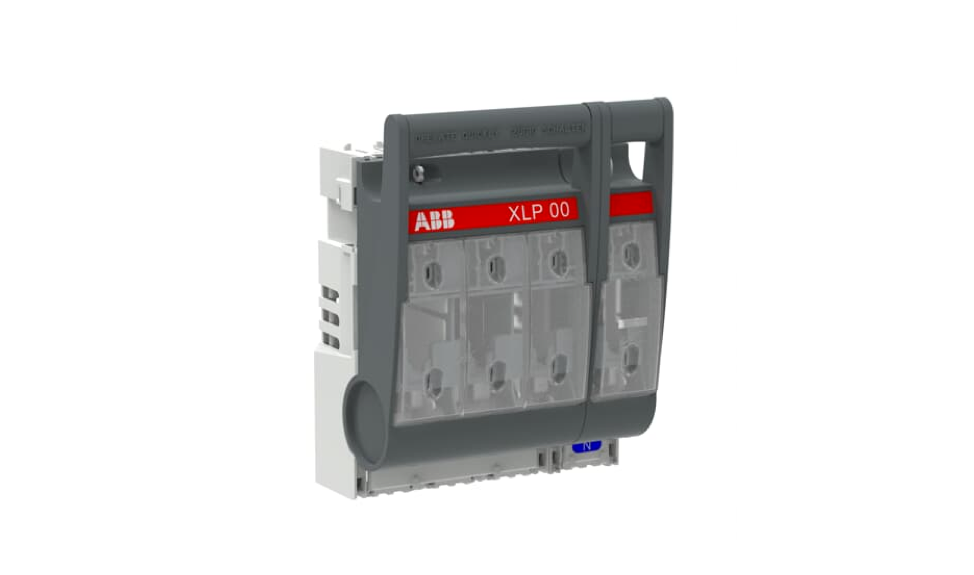

XLP00-4P-8M8
XLP00, 4-pole, 160A, incl. 8 x M8 bolts

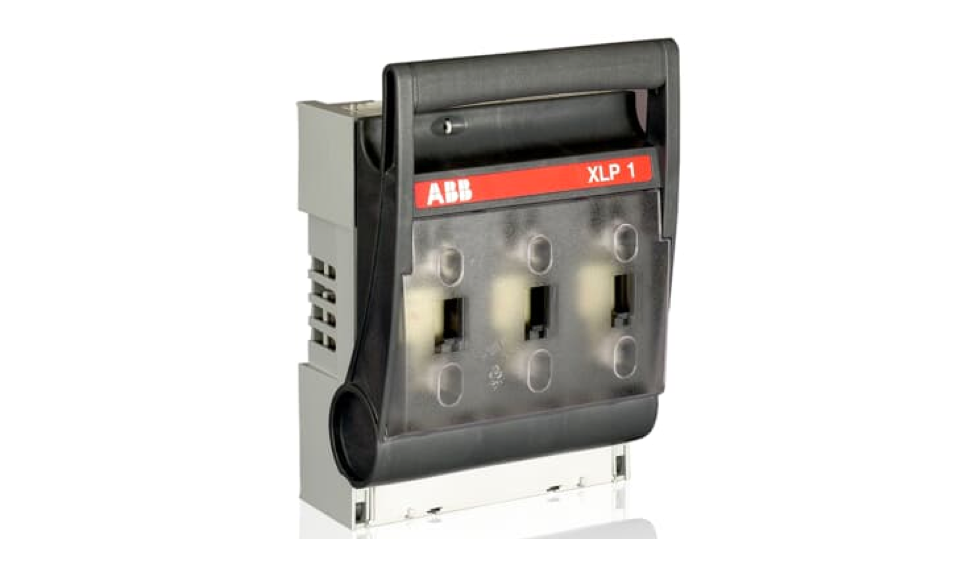

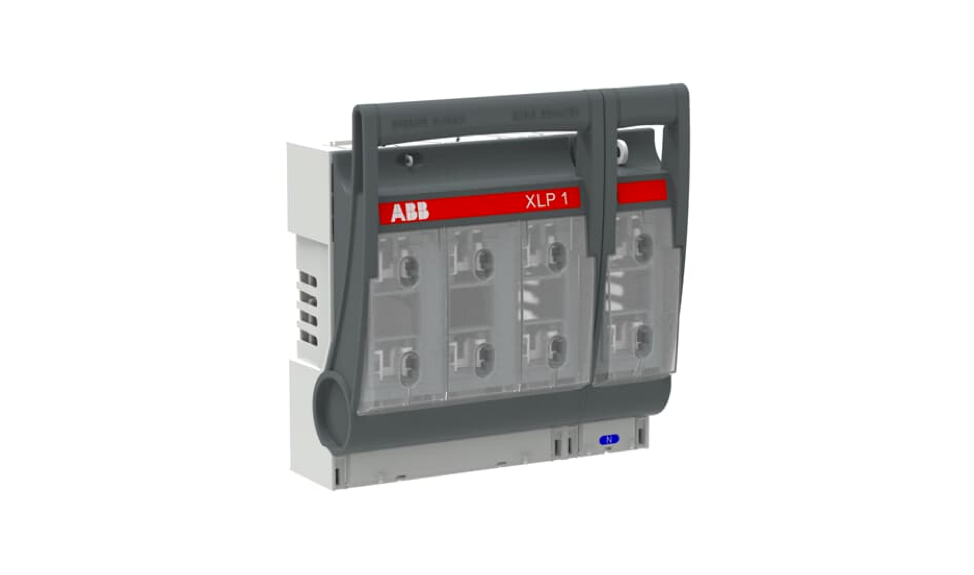

XLP1-6M10
XLP1, 3-pole, 250A, incl. 6 x M10 bolts

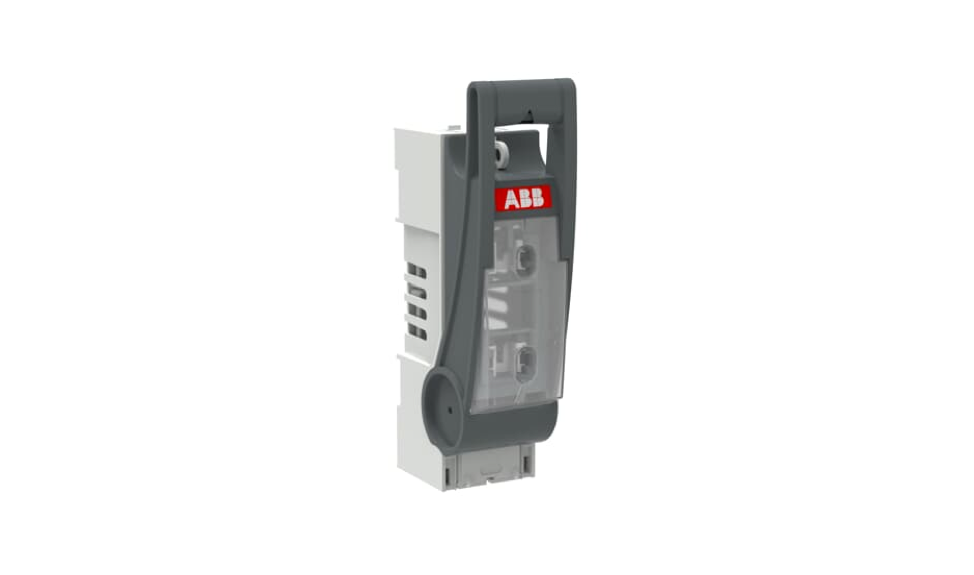

XLP1-1P-M10
XLP1, 1-pole, 250A, incl. M10 bolts

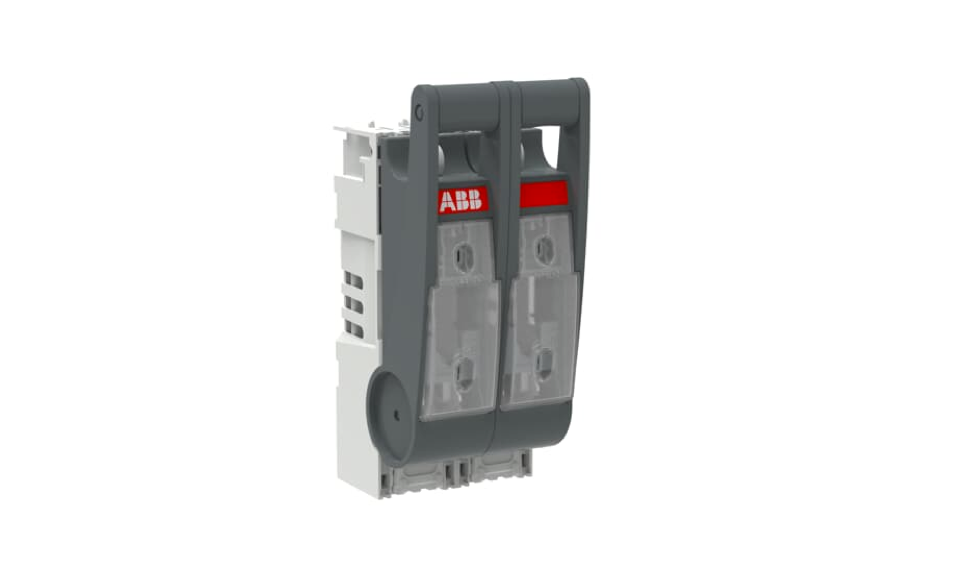

XLP1-2P-4M10
XLP1, 2-pole, 250A, incl. 4 x M10 x 20 bolts
XLP1-4P-8M10
XLP1, 4-pole, 250A, incl. 8 x M8 bolts
XLP2
XLP2, 3-pole, 400A, without clamps or bolts
XLP2-6BC
XLP2, 3-pole, 400A, incl. 6 Bridge Clamps
XLP3
XLP3 630A Fuse Switch Disconnector
XLP3-1P
XLP3-1P
XLP3-2P
XLP3-2 630 A 2pole without clamps or bol
XLP3-6BC
SW FUSE TYPE XLP3-6BC 630A incl. 6
